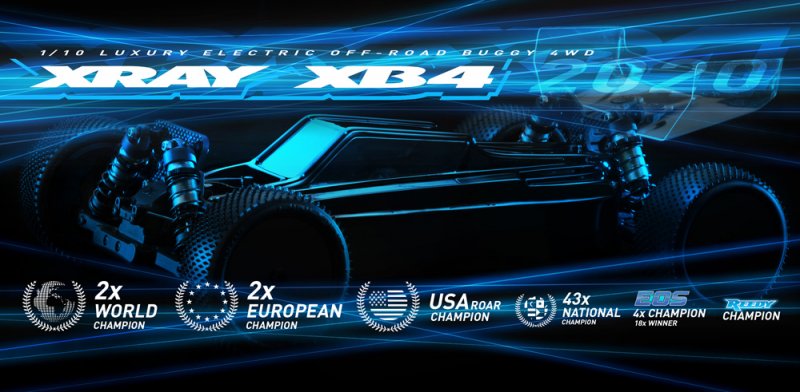

XRAY 360007 XB4 20  [XR-360007]

XRAY XB19

2018 All-new:

• Recent EOS Champion, European Champion, United States Champion and World Champion platform
• Redesigned framework accommodates groundbreaking reduced engine mount to diminish the CG
• Lower engine mounts reduce steadily the fat host to motor and primary slipper clutch/diff, increasing cornering price and stability
• Redesigned paid down composite main bulkhead fits the most recent reduced aluminum engine mount
• Redesigned component guard allows engine become placed lower
• Improved surprise absorber paid off shims give more exact surprise shaft movement
• Improved construction and manufacturing precisely both front part & back differential top gears causes quieter procedure and increased reliability

General:

• Designed for best performance anyway examples of racing
• Engineered with consider smallest details
• Manufactured with popular creative craftsmanship from premium European materials
• EFRA, ROAR, FEMCA spec compliant for stock and modified racing
• Super easy to build, setup, keep, and drive
• Developed, developed and styled by Dipl. Eng. Juraj Hudy, produced totally by XRAY in Europe regarding planet's innovative RC production facility
• Revolutionary off road platform with groundbreaking standard for premium quality, dependability and performance
• Premium XRAY solution & help

Chassis:

• Smarter chassis fat balancing options permit the engine mount and center diff make to move frontwards or backwards
• Unique XRAY Multi-FlexTM technology for easy framework flex adjustment
• Swiss 7075 T6 hardcoated 2.0mm aluminum framework with countersunk holes for flush, smooth underside
• Tough composite component guards completely fit the framework to seal against dust and protect well from component impacts
• Compact electronics plate permits mounting the cost controller for fast & easy decrease and assembly
• Graphite front, primary & straight back top decks split from framework flex modification and work merely included in the front part, main, and straight back diff assemblies
• Composite & graphite framework braces for fine-tuning of framework flex
• Independent servo mount enables the steering servo become set up on framework without pushing it, ensuring the reduction of undesired framework tweak and improvement of basic traction
• Two various battery pack straps brief -or- stretched included. The long battery musical organization allows battery pack become put up either frontwards or rearwards
• Battery foam right back spacer guarantees the battery power won't fall out
• Thick 3.5mm graphite front shock tower & 3.0mm right back surprise tower with numerous surprise mounting and roll center positions
• Extra robust front side & backside bulkheads allow usage of the differentials only utilizing 4 screws

Differentials & Drivetrain:

• Front & right back gear differentials with adjustable oil viscosity, featuring 35T top steel gears and 14T metal pinion gears
• Molded front & backside gear differentials for super-smooth, maintenance-free procedure, features long-lifespan HUDY Spring Steel™ outdrives

• Innovative aluminum motor mount enables frontwards or rearwards motor destination for fat stability adjustment
• Motor eccentric mounting dish inserts into an engine holder/drivetrain help, permitting fast & simple engine rotation for gear mesh and safeguarded clamping with just one screw

• Robust primary slip-adjustable clutch with 81T primary spur gear molded from exclusive key combination of composite material
• Internal 1:2.5 drive ratio
• 3-pad slipper clutch with ultra-efficient SLS product for more efficient & precise slide modification, and HUDY Spring Steel™ hardened outdrives for additional lifespan and reliability
• Constant velocity drives (CVD) are constructed with special HUDY Spring steel for compensated fat and increased durability. The shafts are hand ground for maximum precision
• Safety collars for a number of CVD drive shafts to put on mounting pins securely in place
• Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 and black-coated have actually ultra-true hex clamping design which guarantees solid mounting from the wheel
• Optional 14mm offset wheel hex drive hubs designed for super-fine track-width modification: -0.75mm, 0mm, +0.75mm and 12mm optional wheel hex drive hubs: -0.75mm, +0.75mm, +1.5mm, +2.25mm, +3.00mm, +3.75mm, +4.5mm
• Full few 22 high-speed, blue-sealed ball-bearings utilized through drivetrain to make sure maximum effectiveness, degreased and oiled with Aero Shell® Fluid 12 for maximum smoothness and durability

Suspension:

• Swiss 7075 T6 aluminum suspension system holders front and rear
• Integrated Suspension system system Settings (I.S.S.) for fast & simple suspension system system system geometry developing utilizing eccentric bushings put into aluminum suspension system system system holders
• Specially-designed suspension system elements manufactured from cautiously developed tailor-made composite mixtures to ensure appropriate flex and durability
• Race-perfected suspension system geometry for superior performance and freedom in many competition conditions.
• Lightweight 1-piece caster obstructs with preset 9° caster with effortless adjustable roll center location featuring bigger areas for simple and easy quick disassembly of CVDs; optional 6° & 12° caster obstructs available
• Front framework function pre-angled caster of 8° combined with adjustable I.S.S. settings a mixture 16~20° of total caster might be achieved
• Tiny yet robust steering obstructs molded from a certain composite mixture for maximum power featuring adjustable paid off roll center.
• Very compact 0° toe-in back uprights function 3 different top roll center functions, staggered inner/outer bearing sizes for improved load help and unsprung fat, and wheelbase adjustability via included shims
• Oversized outside bearings in uprights to for increased effective loads
• HUDY Spring SteelTM material for turnbuckles (featuring a tougher core) works extremely well for front component & rear upright linkages, steering system, and servo saver
• Anti-roll pubs constructed from unique springtime metal product to steer the car at both front component and straight back are set up towards diff circumstances & is merely modified via linkages; laser-engraved markings for simple recognition, available in various sizes for fine-tuning

Steering:

• Simple, effective dual-arm steering system with built-in adjustable servo saver guarantees perfect steering and easy Ackermann and bump steer modification

Shocks:

• Consistent, dependable membrane-free big-bore shocks with bleed-screw shock restriction design function up-stop surprise pole travel adjustment (via O-rings) and downstop modification (via shims under pistons)
• Swiss 7075 T6 aluminum shock figures, lower nut & bleeder shock caps are difficult coated
• Super-precise molded Delrin™ pistons can be seen with 2-hole design & opening diameters 1.6mm and 1.7mm for accurate surprise modification; for individualized modification, some blank pistons (no holes) is likewise included
• Shock rods are machined from a certain metal product, precision hand-ground for optimum smooth procedure in addition to hardened for increased lifetime
• Shock springs are smaller allowing more fine journey height modification; yourself determined, selected and matched into pairs to ensure equal size and damping characteristics; laser etched for simple recognition. Two types of springtime sets are contained in the kit.
• Full as a type of linear -or- contemporary shock springs available
• Premium silicone natural oils laboratory tested and calibrated to be certain maximum consistency and quality

Bumper, Body, Wheels:

• Strong composite back wing holder
• Front repaid bumper protrudes from base regarding framework to take all effects from contact between your framework therefore the track surface
• Beefy 6mm thick human body articles from unique composite item for maximum strength
• High-downforce XB4 human anatomy is superior, low-profile, and aerodynamic to totally fit the XB4 design, with front display and top roof movement channels for appropriate venting, and component downforce areas and top primary rib for greater stability
• Specially produced 12mm hex hub tires for high-competition competition; featuring reinforcement ribs to get rid of deformation and molded from really versatile product to retain kind despite effects

Assembly, Set-up & Help:

• Premium 3D full-color Guidelines & supplementary sheets
• To grasp the set-up opportunities we recommend the famous HUDY Set-up Book that will be laden up with over 40 pages of top-quality pictures and easy-to-read RC automobile set-up explanations
• Exclusive Virtual On The Web Setup Sheet database with thousands of set-up sheets for competition songs through the world
• Premium, unmatched XRAY online assistance

Modification Possibilities:

• Fully-adjustable front side and back suspension system system system geometry: caster, camber, toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, roll facilities, Multi-Flex™
• Adjustable front part & back gear differential action (via oil viscosity)
• Adjustable slipper clutch
• Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & right back top links)
• several upper & paid off shock mounting areas at front part & rear
• Adjustable Ackermann and bumpsteer
• Adjustable front side & backside anti-roll bars
• Chassis pre-drilled holes for fat protection modification
