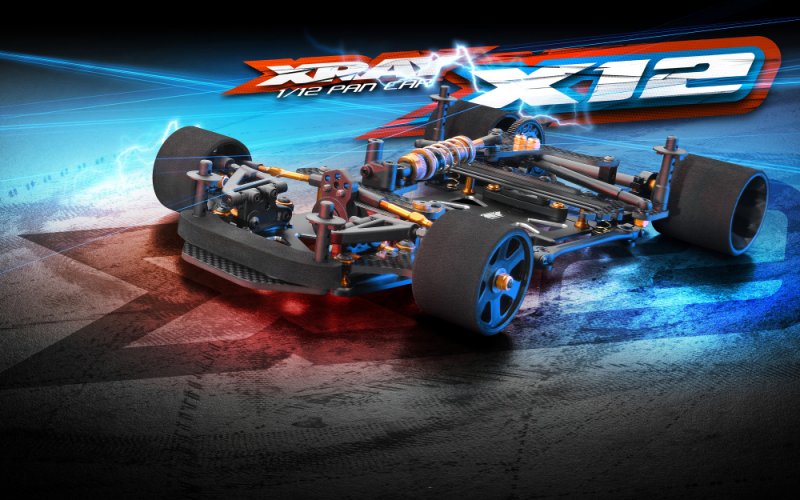

XRAY 370010 X12 2019 US Specs [XR-370010]

Price:

NZD$630.16

Brand:

XRAY

Model:

XR-370010

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Pan Cars category

Write a review

alt="XRAY 370010 X12 2019 US Specs" title="XRAY 370010 X12 2019 US Specs"

Description

Dimensions

Class: 1/12 electric pan car
Width: Adjustable 167mm +/- 3mm front
Length: 264mm (varies devoted to rear tires utilized)
Wheelbase: 201 +/-0.5mm
Weight: 205 g
Ready-to-run fat: 840 g - incl. BL system (varies based on gear used)

Chassis

Chassis: EU variation - 2.5mm carbon soluble fiber, CNC machined; united states variation - 2.0mm Swiss 7075 T6 aluminum, CNC machined
Body: perhaps not included, uses 1/12 pan car kind

Drivetrain

Type: 2WD direct drive to rear axle
Rear Axle: Graphite shaft with ball differential
Primary: Spur/pinion
Bearings: High-speed ball-bearings (10)

Suspension

Front: Spring-supported, kingpin-style front suspension system with composite top & reduced suspension system system system hands and steering obstructs
back: Articulating right back engine POD adjustable via pivot-ball links, handled by back surprise absorber
Rear Shock: Central adjustable oil-filled surprise absorber
Geometry

Ride Height:

Wheelbase: Adjustable front
Camber: Adjustable front
Front Caster (Static): 114.5° fixed adjustable fixed caster
Front Caster (Reactive): 2.57.5° adjustable reactive caster
Track-width: Adjustable front component and rear
Toe: Adjustable front
Downstop: Adjustable rear
Ackermann: Adjustable with shims
Bumpsteer: Adjustable with shims
Steering: Direct linkage between steering servo saver and steering obstructs
Balance: Front/rear fat safety adjustable via battery power place

Other

Wheels: maybe not included
Tires: perhaps not included
Instructions: Full-color guide with 3D designs
Set-up guide: Printed variation not included. Latest full-color Set-up guide (16 pages) could possibly be setup from XRAY site. Set-up Book shows past XRAY models in photographs included within it, however the methodology and set-up concept are the identical for a number of 1/12 pan automobiles.
Packaging: Carton industry with artificial bags with parts
Additionally included: HUDY Diff Grease, Authentication Certificate, elements list & exploded view, decals, oils
Not included: Motor, batteries, rate controller, tires, human anatomy, steering servo, radio gear, tools

Remark :

Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
