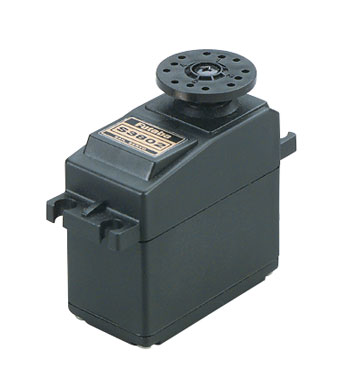

Futaba S3802 Sail Servo  [S3802]

Which a premier Torque, Arm-Type Sail Servo with a Metal manufacturing Gear for Sailboat Applications.

This S3802 may be the replacement the S125 servo. It might create high-current draw from your own batteries if utilizing NiMH or LiPo batteries, cause them to become effective at delivering enough amps.

FEATURES:
Metal gears with a specific interference-eliminating lubricant to cope with high torque applications.
3-pole motor
Two ball bearings
Synthetic sail supply included (FSH25H), plus 22mm Round Horn
Rubber gaskets help it be water and dust resistant.
12 months guarantee
Has an arc of 60�X, it really is with the capacity of 140�X with some variety of computer radio that has adjustable ATV. updated 4-28-05, dew

INCLUDES:
One S3802 Tall Torque Sail Servo w/ J Connector
Four Mounting Screws
Four Rectangular Grommets
Four Brass eyelets

SPECS:
Length: 1.7" (44mm)
Width: 0.9" (23mm)
Height: 1.7" (43mm)
body weight: 2.5oz (72g)
Sail Arm Length: 125mm
Torque: 122 oz-in @ 4.8V - 153 oz-in @ 6V
8.8 kg-cm @ 4.8V - 11.0 kg-cm @ 6V
Transit Time: 0.70 sec/60�X @ 4.8V - 0.56 sec/60�X @ 6V
