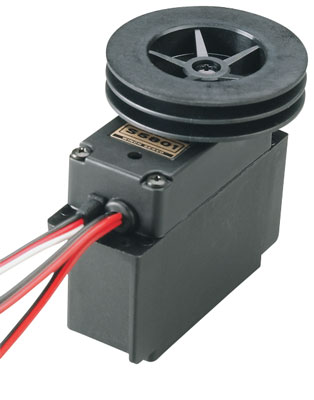

Futaba S5801 Servo Sail Winch  [S5801]

this is often a Sail Control Winch Servo which includes appropriate Winching-Action with a
Drum (instead of servo fingers like other "sail winch" servos).

This servo could potentially cause high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, cause them to capable
of delivering sufficient Amps.

FEATURES: High Torque and high Speed
BEC set-up (a 5-6 mobile electric batteries capabilities the winch and the
receiver a similar way an electronic Speed Control would)
liquid Resistant
5-pole motor
Metal Gears
Two Ball Bearing
Adjustable Trimmer (adjusts from two to six 360?revolutions) as
increasing range revolutions are dialed in-speed increases

INCLUDES: One S5801 Sail Winch Servo
(Futaba J Receiver Plug, ON/OFF modification and Tamiya-style electric batteries plug)
One Drum Adjuster plastic Screwdriver
One Illustrated suggestions Sheet

REQUIRES: 5-6 Cell Battery w/Tamiya Connector, usage DTXC2100.

SPECS: Torque: 109 oz/in @ 6V - 136 oz/in @ 7.2V
(7.8 kg/cm @ 6V - 9.8 kg/cm @ 7.2V)
Servo Speed: .6 seconds/360-degrees of rotation @ 6V
.5 seconds/360-degrees of rotation @ 7.2V
Drum Travel: 2 to 6 Revolutions (adjustment range)
Drum Diameter: 1.6" (42mm)
Length: 1.8" (46mm) (excluding drum and mount flanges)
Width: 1.0" (25mm)
Height: 1.8" (46mm)
fat: 2.9 oz (83g)
energy Requirement: 6.0 - 7.2V NiCd battery power (5 - 6 cells)
Regulator manufacturing: 6.0V/1.5 Amp (optimum) (capability to the receiver)
Drum proportions:
Height: 9.0mm (0.356)
Width: 41.9mm (1.652")
Width of each and every groove: 3.5mm (0.140")
Depth of every groove:13.7mm (0.540")
