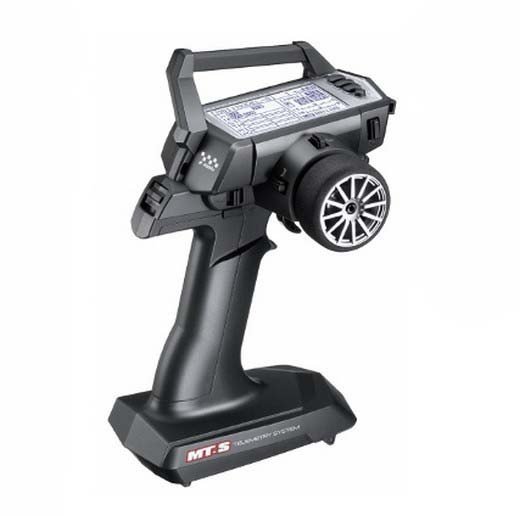

Sanwa MT-S - 4CH 2.4Ghz with RX-482 x 2, FH4/FH3 SSR SSL 4cell  [SW-MT-S]

CHARACTERISTICS:

• SETUP WIZARD FOR SIMPLE SETTING,CAR TYPE(8 MODEL TYPES) COULD BE SET REALLY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The suitable gear are set by transmitter through CODE AUX functions.
  *Compatible gear: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain modification)
• LIGHT BODY (366g),EASY PROCESS FOR KIDS
• MIDDLE CLASS (BASIC)

SYSTEM PROPERTIES:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• INTEGRAL ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE COST CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY PACK)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT ESTABLISHING
• TELEMETRY ESTABLISHING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / AMOUNT CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD COMPARISON
• VOLUME ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE TECHNIQUE DESIGN OF 3CH)
• AUX2(SELECT THE PROCEDURE FORM OF 4CH)
• AUX TYPE SETTING
• CODE AUX (APPROPRIATE SUPER VORTEX ZERO & TYPE-D MENU)
• ACTION AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS BLENDING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE PRICING IS VARIABLE.
• AUX BLENDING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,
  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL DESCRIPTION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA brand new SSL SYSTEM

• whenever utilized in combination with appropriate RX-472, RX-482, Super Vortex Series, SV-Plus Series, the surroundings of ESC etc. by Transmitter can be acquired through SSL functions while driving.
• Given that the environmental surroundings could be accomplished without end of vehicle, the step-by-step modification before Race conditions may be had without interruption of durations for that reason modification of device conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• its known that telemetry system reduce effect rate. But SANWA Original information Processing and Algorithm Design makes Telemetry feasible without response rate decrease.
  Our exemplary Telemetry System doesn't always have effect speed decrease.
• With this specific telemetry system, the valuable competition information will help these competition establishing and driving.

[RESPONSE MODE]

• don’t use Analog Servo for SHR mode or SSR mode.
• If analog servo is required for SHR mode or SSR mode, the servo is going to be broken and may also maybe not work.
• Digital servo (SRG show, Digital ERG series, SDX show) can be utilized both for NOR mode and SHR mode.
• SSR mode can be used by just SRG show servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR never work.
• Please usage NOR mode the aforementioned ESC. SV-08, HV-10, HV-12, F2500 could work by NOR/SHR MODE.
