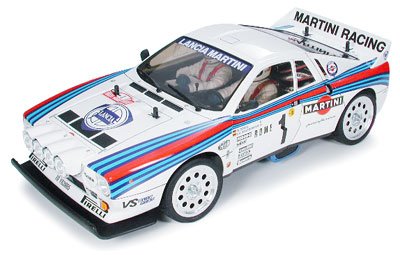

Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)  [58278]

The Lancia 037 Rally was made considering 1983 World Rally Championship, Group B legislation. Adjusted from Lancia Beta Monte Carlo, the glass-fiber reinforced resin human anatomy completed up being manufactured by Sergio Pininfarina and encases a 2 liter 4 cylinder super-charged engine that boasts over 300 hp. The car's reliability and top condition assisted allow it to be the name of providers' Champion.

Practical, step-by-step Reproduction of automobile Body
the reproduction accurate towards tiniest components with a resin strengthened human anatomy, the model features the Lancia's trademark 4-headlight device. The model also incorporates motorist and co-driver figures, and stickers located in the Monte Carlo rally.

High-Efficiency Belt Transmission 4WD
A hardened bathtub sort FRP main frame functions although the backbone the high-efficiency 4WD gear transmission. Besides tightly fastened gearboxes in the front part and back concerning the car have an overall of 9 ball bearings, minimizing drive loss and taking advantage of effectiveness.

Independent 4-wheel Suspension created using Wheel Dampers
4-wheel split double wishbone suspension system for exemplary road keeping made out of high-shock absorbing wheel dampers. Authentic semi-slick tires to truly get you psyched up for intense rally vehicle action.

Fundamental Specifications

• Chassis Type: TA03
• Scale: 1/10
• basic Length: 416mm
• General Width: 186mm
• Overall Height: 130mm
• Minimum Clearance: 8mm
• Weight Completely Equipped: 1,700g (including battery power)
• Wheelbase: 237mm
• Tread (front and straight back): 157mm
• Chassis Material: ABS Resin Type
• Chassis Type: Bath-tub framework
• Steering Tie Rods: split in three portions
• suspension system system system (front part and back): double wishbone
• Caster Angle (f/r): 10 deg./3 deg.
• Camber Angle (f/r): 1.5 deg.
• Toe Angle (f/r): 0 deg. (variable)/1.5 deg.
• Dampers (f/r): CVA Damper super mini/CVA Damper mini II
• Drive Train: gear driven mid-ship full-time
• 4WD Gear Ratio: 8.51:1(OP gear use 4.76-9.93)
• Diff Gear System (f/r): three bevel diff
• Speed Controller: amplifier
• Tire Width (f/r): 27mm
• Tire Diameter (f/r): 65mm
• Tire Pattern (f/r): semi-slick racing
• Type 540 engine

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or top for 6-cell battery pack
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Things: Building and track gear
