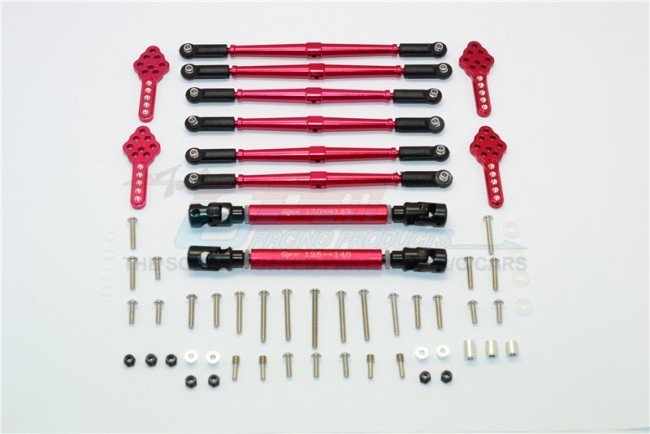

This technique includes :
Stainless steel Button Head Screw
3*30 - 1pc
3*25 - 4pcs
3*20 - 3pcs
3*16 - 8pcs
3*10 - 8pcs
Aluminium Collars
3*6*4 - 4pcs
3*6*6.5 - 1pc
3*6*7.5 - 1pc
3*6*9 - 1pc - 4pcs
M4*2.5*12 Screw Shaft
O-Ring
4*2.5 - 4pcs
4*1 - 4pcs
3MM T Lock Nut - 7pcs
Product major function & use :
1. boost the height regarding the framework, expand the crawling angle especially in complex crawling rocky landscape
2. major Shaft is upgraded from CVD see universal move shaft cross check out obtain a bigger angle of steering
3. Considering various holes from the damper dish, they could be in a position enable the dampers become modified in a number of height.
Lift the car from 77mm ground approval to 87mm ground approval can guarantee the crawling perspectives be bigger plus in a position to face tougher high traction landscape. This combination is preparing to link and play. We now have measured each tie pole with actually accurate dimension to prevent number of them is perfect without force during crawling.
Original height of chassis ground clearance 77mm, this lift combination gets the height of 87mm, with a 10mm height increase
Front top framework website link tie pole : Midpoint 130mm
Front reduced framework website link tie pole : Midpoint 130mm
Rear compensated framework hyperlink tie pole : Midpoint 140mm
Adjustable primary shaft : very long main shaft 125mm-140mm, fast main shaft 130mm-145mm
