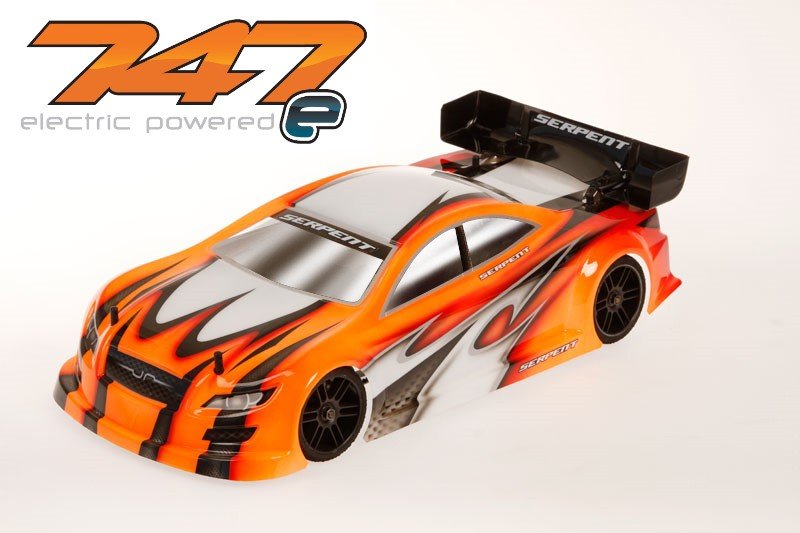

Serpent 747-e 1/10 scale 4wd 200mm electric rushing vehicle. In comparison to every day to time 1/10 scale touringcar, the control is very various, much easier. As you will race with a wider automobile of 200mm as well as make use of foam tyres on wider rims. The 1/10 200mm cars may fundamental stronger ( and somewhat weightier) that can just take the surplus energy you've gotten efficiently, without deteriorating fast. Even though crashing the 200mm cars tend to be more durable and might soak up more energy.
Demands:
- Course: 200mm 1/10th Scale
- Purpose: 200mm Touring automobile Racer
- Chassis: 3mm carbon fiber , CNC machined
- Suspension: Independent increase wishbone suspension system
- Top-deck: 2mm carbon fibre, CNC machined
- Shock absorbers: RCM surprise absorbers
- Drive system: 4wd through kevlar strengthened timing belts
- Front axle: Gear Differential v2 (Optional a successful technique axle )
- backside axle: Gear Differential v2
- Weight: 1.595kg (prior to radio gear)
- Max. rate: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- Directions: color guidelines, guide guide
- Perhaps maybe not included: Body, speedo, motor, radio gear, electric batteries, tires
Features:
- Carbon fibre framework and topdeck
- Aluminum motormounts which doubles up as midshaft owner and right back anti-roll club owner
- Ballraced midshaft is initiated in seperate brackets permitting simple and fast spurgear modifications
- low steeringservo location, with centrally generate supports alu/carbon framework
- 2 alu L-shaped topdeck supports with built-in ballraced gear tensioners
- front part and right back geardiffs, front part and back same
- Ballraced anti-roll bars
- Carbon fibre battery holders
- completely adjustable separate suspension system system system
- Minimal friction belts and precision made pullies
- RCCX shockabsorbers
- Front CVD and right back dogbones in Serpent Spring metal
- minimal and wide front component bumper
Chassis
Symmetrical chassisplate also for flex and torsion in 3mm carbon fiber, lowered in which the motor mounts as low as feasible into the vehicle.
Topdeck
The 2mm carbon fiber topdeck link leading and back suspension system system.
Battery holders
The battery power holders have been around in carbon fiber but still have sleeves enable use of battery mounting taope effectively.
Servo-holder
suprisingly low mounted servo, a fantastic carbon/alu owner which centrally put up for even flex
Motor / midshaft / anti-roll club owner
the motor is initiated regarding lowest strong aluminium owner, which doubles as mid-shaft owner and backside anti-roll club owner also.
The mid-shaft mounts in 2 seperate holders coupled with ballbearing inside to enanble an easy and simple modification of gears.
RCM shocks
Rough Teflon coated threaded shockbodies in top quality aluminium. Supersmooth o-ring / bushing package, to guide and seal the spring-steel piston rods. Precision moulded pistons present 3 kinds. Threaded pre-load shocknuts in alu with o-ring inside. Light but strong nylon spring-cups. Tight fitting ball-joints in top and base.
Front bumper
Newly created paid down front component bumper with aerodynamic impacts and better protection. Some areas of the paid down bumper may be cut offered to create more steering. The most truly effective bumper / bodymount owner link toward low someone to create a robust framework to take the crashes. The foam elements ( normal or big) can nevertheless be put but are optional.
Shocktower front part
3.0mm carbon fibre shocktowers with 3 jobs to find the best shockmounting. In the centre you'll install another bodypost as required.
Front brackets
a super taut and superlight framework of topquality aluminium components have actually top-brackets, L and R equal bearing brackets, paid down suspension system bracket front component, L and R equal FR-RR standing suspension system system system holders and backside, anti-roll club owner and Lightened machined alu brackets, equal left and right, toothed part allow environment gear anxiety with excenters which seat the bearings. Machined alu topbrackets L and R variation to hold the surface of the hands. Suspension system system bracket front part . All crafty machined and grey anodised elements. The open style design permits rapidly elements change as needed, like gear, diff or anti-roll club.
Suspension system front side
Strong extended twice A-arm suspension system system with aluminium pivotballs, which pivot in light nylon cups. Moderate difficult nylon employed for the fingers to have some flex to improve hold, and work-out them many durable. The hands pivot inside on springsteel pins. The pivot-inserts are accustomed to change rollcenter. Little grubscrews mount in top bracket to deal with downstop. Easy to get at and change trip height, front component width, toe-in, caster and camber.
Steeringblocks / wheelaxles / cvd
good nylon steeringblocks with 2 ackermann jobs . The spring-steel wheelaxles are seated in advanced level bearings. The light and durable spring-steel cvds bring all the ability towards the leading tires. Tires are set up to orange anodised high quality aluminium hex-adaptors utilizing serrated wheelnuts.
Anti-roll club front
The ballraced cable type anti-rollbar to your front side is actually accessible and modification for almost any other kind or depth as required. The anit-roll club is from the reduced a-arms with a distinctive pivotball/cup system, which provides direct and smooth procedure which is super easy setting.
Servo-saver / steering
The centraly mounted metal servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts help 2 ackermann settings. As a result of available design the linkages with L/R threading might reached effortlessly. The entire system permits excessively accurate steering and minimal bumpsteer.
Straight back brackets
really available end design with a framework of 8 machined alu brackets, enabling handled flex and simple maintenance. The differential brackets, L and R equal, are toothed and seat the excentric bearing owner, which enable developing belttension. Its exceptionally quick and easy to include a differential and or change a belt.
The machined aluminium paid down suspension brackets have in fact really roll-center inserts with 3 functions available. The trunk bracket will be the V1 variation, that will be slim than put on the 733, to ultimately achieve the new geometry using the close lower fingers and uprights.
Back carbon shocktower and camber bracket
The 3.0mm carbon shocktower has 3 top mounting spot the shocks plus it mounts the body-poles. The camber bracket provides 8 functions available, 4 internal and 4 out holes.
Suspension back
the newest back fingers alongside the latest uprights create this new geometry inside right back, produce a wider set-up sweet-spot with extra hold and so many more steering. The top camber rods wear your carbon camber bracket with 8 mounting functions for roll-center along with the camber pole is not hard getting usage of and possesses L/R threading for fast modifications. The aluminium pivotball system enables quick alterations wide and toe-in. Into the lower in the wishbone pivots on springsteel pins, which chair with roll-center inserts inside anodised alu suspension system brackets.
Spine wishbones
the composite paid off wishbones work a mounting spot the anti-roll bar linkage bracket in carbon, which moves the web link spot more outside and greater. Its provides a mounting spot for an optional carbon shock-mount bracket, to obtain the paid down shockmount location further away, also for the standard set-up its unneeded. By putting the paid down surprise further away, you will get more steering .
Uprights / wheel-axles
Durable medium kind nylon uprights, which seat the wheel-axles bearings. The upright supplies the mounting destination the metal camber-rod with L/R threading. The durable springtime metal wheelaxles bring to power through gear-diff toward tires. Tires are fitted on top quality anodised alu wheelhex adaptors and guaranteed in full with serrated flanged wheelnuts.
Anti-roll club back
The ballraced wire kind anti-rollbar in straight back is actually available through most readily useful and alter for every other type or level as required. The anti-roll bar is through paid a-arms with a steel pole. The low arms offers 2 mounting jobs available.
Gear-differentials
Compact, durable and light gear differential. Pecision moulded metal gears, 2 tiny and 2 big individuals. Metal inside shaft. The durable and light springtime metal lightened diff-adaptors relate solely to the driveshafts. The geardiff is very same front side component and rear.
CVD driveshafts
Spring steel, light and very durable CVDs located in the best. Precision mounted hard metal pins
Drive-shafts
Spring steel, light and extremely durable dogbones found in the trunk. Precision mounted difficult steel pins
Pulleys
Precison moulded super-true pullies, which work holed sidewalls to allow debris re-locate easier. Light and durable.
Belts
Kevlar reinforced belts with fine pitch. Longlasting and smooth.
Belt-tensioners
2 Ball raced belt-tensioners, machined from aluminium mount between your framework and topdeck.
