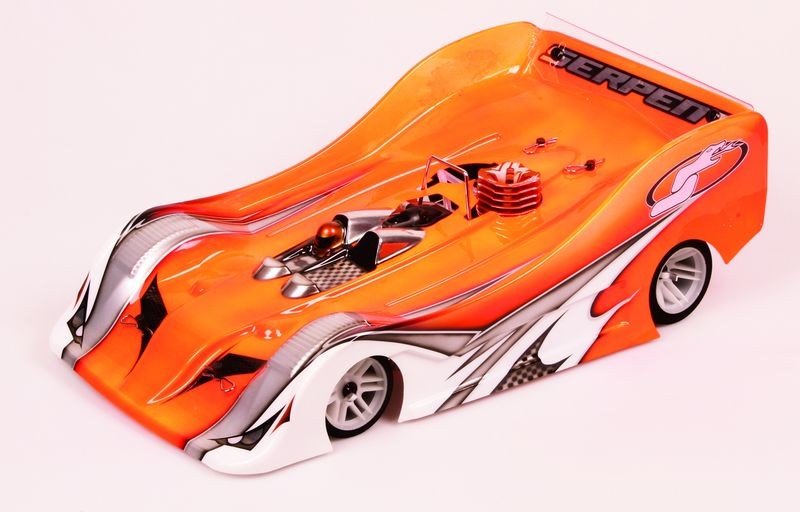

Serpent 1/8 scale 4wd gaspowered rushing car framework. Serpent 966 may be the next generation race-car based on the extremely successfull Serpent 960 platform.
Needs:
- program: 1/8th scale gasoline on-road, IFMAR recommendations
- function: High-end competition
- body weight: 2.520kg (dependent on radio gear)
- Track-width backside: 260mm - 266mm
- Track-width front side: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- broadcast dish: 2.5mm carbon dietary fiber
- suspension system system: Independent enhance wishbone suspension system system system
- Shock absorbers: RCC shock absorbers, pre put together
- vehicle's gas tank: 125cc design with shaped synthetic seal AFL lid
- straight back axle: Solid right back yet again axle
- Front axle: Aluminium front side axle with one-way bearings
- Gearbox: Lightweight 2-speed with interchangeable gears 45-48T std
- Clutch system: Centax-II clutch system with interchangeable hard anodized alu. gears 16-19T std
- recommendations: Comprehensive color instructions and Set-up guide
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and right back roll centre
- maybe not included: motor and pipeline, human anatomy, radio gear, tires, tires, 5-cell battery power are not included
Features:
- completely new type backside alu brackets and alu 2-speed brackets
- Wire kind rear anti-roll club as standard
- Mono-type diskbrake
Chassis Dish
The backbone linked to automobile would be the framework dish, which CNC-machined from exceedingly rigid american 7075 T6 - 5mm aerospace-quality aluminium and recreations a simple front opening to enhance the true secret anti-roll club. A cooling slot in engine assists help heat control while chamfered sides prevent the framework from getting on kerbs providing it better general ground approval regarding track. It houses the battery power, which is set up to your newly-designed carbon fibre battery power mounting supper and it's also held set up by four screws, screwed straight to the framework dish it self. This brand new 966 supper in addition has been machined to simply accept the optional front side part stiffener meal.
Brake-system
The stopping system system ensures strong and efficient stopping energy. The stopping system pads have actually in fact two metal meals using the friction item pre-baked towards the washing, in addition to the braking system disk is manufactured far from double ventilated discs with an air-cooling alu centre.The unique stopping system sits paid down the automobile to greatly help LCG. The system is effectively accessable for maintenance, because actually available design.
The spring-loaded bar-pads wear polished steel pins and tend to be triggered through ball-raced stopping system cam, a sizable pin methods horizontally to stimulate the stopping system system. As a result of horizontal action using this pin, in place of the twisting the stopping system cam, all distortion in this region is expunged along with the stopping system pads are evenly pushed together. The stopping system cam is supported by ball-bearings for smooth, accurate action. This further advances the accuracy and exemplary stopping power of stopping system.
Brake 966
Lower mounted brake-assembly for repaid LCG. Spring-loaded brake-plates slides on polished metal shafts. Ready-to-run stopping system plate/pads construction with new friction brake product. The ball-raced hard anodized brake-cam push the two bigger pins which are seated in aluminium bracket, through brakeplat, to construct excessively smooth alongside force towards the dinner.
improved RCC Shock Absorbers
The RCC shock absorbers are super-smooth and extremely very simple generate. Machined from metal and unique once the surprise systems merely open regarding bottom half, they're actually a simple task to assemble. They include an organization piston without any longer usage a diaphragm just like the past shocks but a foam. The result is an ultra-smooth and air-free shock absorber due to the self-bleeding system integrated into the design.The seal-package on shocks is improved ( completely new x-ring / bushing) and will be offering better help towards pole. Little modification, BIG benefit.
major back brackets
Anodized, cnc machined, aluminum primary back axle supports with coated alu eccenters; more rigid, better rear axle help for a real operating backside shaft, simple belt-tensioning, instant access for maintenance. Utilizing the eccenters you are going to choose 3 jobs for rear- gear tensioning. By detatching the eccenter using one part the trunk shaft with pulley and gear can be accessed easily. Major rear helps are machined maximum to zero fat, but retain rigidness as well. Pins are pre-pressed to the base linked to the brackets which in turn chair in to the positioning holes inside framework. Precise and safe.
front side Axle
the main thing axle is manufactured away from high-grade aluminium possesses the utmost effective quality one-way bearings lubricated with one-way lube. This guarantees an average drive towards the key Spring steel drive cups.
Front Anti-roll Bar
The Serpent 966 comes standard with a variable front part anti-roll club. By rotating both blades, its easy to adjust the tightness. Centering with a better adjuster eccentric.
Front Bumper and Body Mount
leading human body mount linked to the Serpent 966 is screwed reduced along with bumper, allowing many flex in the body post mounts whilst keeping the tightness concerning the fundamental construction. Your body mount is held further through two screws mounted from part.As utilising the back roll centre, leading roll centre are effectively modified. The modification is completed by removing leading top suspension system system system system brackets and putting spacers beneath the brackets then re-attaching them towards automobile.
The 966 includes anodised aluminium front component top suspension system brackets being machined in a single small aluminium. These attractive pieces are extremely strong and great protection in the eventuality of huge impact. The other great benefit of this component is the fact that because of the using inserts, with an offset opening, you'll adjust the pivot place through the top front side component wishbones. Another good design function would be the proven fact that exact same front suspension system system bracket may be used on both remaining and right sides of car.
Steering obstructs
These Wide offset (WOS) steering obstructs is effective in 2 various designs by swapping the medial side about the vehicle they're typically set up on. These improvements, on the basis of the component the steering obstructs are used on, will either provide more submit on component entry, or higher on power steering at component exit. The included eccenters ensure that the axle is raised higher than centre line, which improves the consequence owing to this completely new setup and as a result of usage of eccenters the bearings are in truth also smaller and lighter, reducing un sprung fat.
Front Suspension
the main element anti-roll club levers, being combined with down prevents allowing for easier tweak. They put inwards, in the bearing-blocks, leaving them more effective considering less flex. Leading paid off arms look after the best anti-roll club spot.
Adjustable Front Belt Tension
a great function may be the capacity to adjust the concerns associated with front gear. The simple-to-use bearing eccentric holders assist simple and fast environment.
Front Shock Tower
Leading shock tower the Serpent 966 includes 3mm carbon dietary fiber, making this component ultra crash resistant. Leading surprise tower besides features two surprise mounting functions to assist you fine tune your vehicle for almost any track conditions.
Driveshafts / wheelaxles
Serpent just utilize highest-quality drive train of this automobiles. The 966 automobile comes given the very best springtime Steel drive shafts with the capacity of withstanding constant punishment; these shafts are ultra durable and intensely rigid allowing someone to put all your capability on tarmac.
Front CVD and right back regular dogbones.Made from Spring metal, leading and back wheel axles have become durable and ultra strong. They've been a precision complement the main bearings whenever set up using the provided shims to be certain a super taut precise wheel fit. Leading axle also comprises the main element CVD shafts that are included within kit and can for that reason be properly used with both provided fast launch system and/or optional wheel peanuts.
Pivot Balls
created from Spring Steel, these polished 8.5mm pivot balls are virtually unbreakable and guarantee the smoothest suspension system motion feasible.
Adjusting nut for pivot balls
These adjusting peanuts are produced from Nylon and change the sooner aluminium nut with artificial insert that may not simply makes create easier, additionally decreases un-sprung fat. Reducing sun and rain utilized now in addition decreases component perform therefore it produces an even more accurate control vehicle so when them used is self-lubricating the motion pertaining to pivot ball will be smooth throughout use.
Aluminium center bracket
The Serpent 966 comes given an aluminium center bracket as standard. Changing the normal composite variation, the modern part is a lot stiffer consequently decreases flex within axle which prolongs residing of belts and pulleys.
broadcast Plate Help Bracket
The air meal help bracket, spot right as you're watching motor, additionally will continue to work as the mounting point the roll over club. The roll over club is shaped in ways it optimizes the car's fat blood circulation whenever within hand.
Battery Mounting Plate
The carbon dietary fiber battery power mounting meal was created to control to accommodate many battery pack designs, such as the traditional 5 mobile pack. The electric batteries mounting meal is constructed of a 2mm black colored colored colored carbon dietary fiber which is set up towards the framework meal by four countersunk screws.
Chassis Stiffeners
Another function will be the two carbon-fibre component mounted chassis stiffeners. These dishes form a fantastic connection betwixt your front part and back element of the 960, and are generally arranged right to the atmosphere meal bracket as well as the trunk bulkheads. They boost the framework tightness, a vital condition to produce effective using more impressive range suspension system system modification options. The remainder chassis stiffener increases as a belt-tensioner owner to with a lengthier slot enable alterations.
Throttle Servo Mounting
The 966 provides two opportunities the mounting from the throttle servo, in the first place which can become the the first stand-up throttle servo layout. To lessen the automobiles centre of gravity there clearly was a new to put in the throttle servo in a variety down setup. This moves the hefty motor as well as other areas of the servo paid off as well as the interior permitting better fat circulation and C of G.
The set down throttle servo construction is created to easily fit into the conventional servo mounting room, consequently allowing the straightforward modification over between designs. In the event that you opt to make use of mainstream upright mounting, you can actually mount the receiver close to the throttle servo. Otherwise the receiver is in its standard spot about the remaining part associated with the radio meal.
vehicle's gas tank
Serpent have actually actually really provided the 125cc vehicle's gas tank with a new silicone plastic seal the AFL car's gas tank lid that stops leakage consequently provides more constant motor performance. Created from silicone synthetic, this amazing seal is shaped generate an excellent seal on the opening through the tank and allowing the tank lid to shut totally.
The tank is manufactured away from a far more recent more powerful item. The milky white coloured tanks do have more opposition to shattering whenever there is much effect and alterations toward lid pivot pin spot further guarantee a perfectly sealed tank. The latest item usually less temperature sensitive and painful and will keeps it contour better furthermore whenever hot. The tank provides the possibility to create little spacers inside to fine-tune the number.
Receiver Mounting
The receiver in Serpent 966 could possibly be put up in 2 various functions, specialized in whether you choose the laydown throttle servo mounting and/or traditional upright throttle servo mounting.
If you mount the throttle servo utilising the laydown setup, the receiver is initiated regarding the staying side of radio dinner, involving the gas tank as the exhaust system.
In the event that you mount the throttle servo using the old-fashioned upright setup, the receiver (and protective target) are setup near the throttle servo.
The main benefit of these alternative mounting jobs is that it includes choices for electronics positioning, also choices for eliminating any recurring disruption problems that might occur.
Steering Servo Mounting
The steering servo is set up concerning the proper part directly to the base of stereo dinner and hangs without any such thing. The steering system makes use of a centrally installed servo-saver, which features adjustable springtime anxiety which is offered with four Ackerman options, utilizing inserts, to greatly help fine-tune the 966 steering faculties. Adjustable metal track rods with staying and right threads are standard.
right back Axle
Made from Spring steel, the solid rear axle is quite durable and ultra strong supplying a great base to put in the trunk drive pulley. A steel pin secures the pulley and an o-ring keeps it create.
Adjustable straight back Roll Center and Camber Increase
towards Serpent 966 a large part roll centre is adjustable in the event that you use offset composite inserts, which destination the wishbone pivot pins about the reduced wishbones.The rear camber increase may be modified through identical strategy but on back wishbone pivot pins. Using composite inserts means both modifications may be just made track component.
Back Anti-roll Bar
The cable type backside anti-roll club within the Serpent 966 is ball-raced for additional precision and even more precision.The blade type back anti-roll club is optional.
straight back Body Mount
a sizable part human anatomy mount into the Serpent 966 could possibly be connected in a number of alternative methods to boost or reduce the downforce delivered from human anatomy toward back tires. You will find extended human body mount arms, being setup towards back uprights at axle degree offers more down force on tires. Your entire construction may also be free from binding, meaning there isn't any restriction of motion regarding suspension system.
straight back Suspension
the trunk end geometry provides exemplary buttocks hold and a truly stable vehicle both under stopping including making corners. The OS 2 uprights sport little bearings to minimize un sprung fat, 3 top supply mounting jobs and so the possibility to utilize shims for changing the roll facilities. Strong paid down wishbones with sufficient material round the pivot pin and pivot balls, even though upper hands make it easy for effortless modification concerning the camber and camber enhance. Longer body mount hands provide more down force towards tires yet don't have any binding because of the mounting spot.
back Shock Tower
a large part shock tower the Serpent 966 is constructed of 3mm carbon fibre, which again makes this component ultra crash resistant. The trunk surprise tower tasks 4 shock mounting jobs that will help fine-tune your cars managing track component.
fast publish Wheel System
The Serpent 966 comes standard with both spring-loaded aluminium fast introduce levers and fixed alu peanuts (with o-rings).
Quick-change
This dependable and time-saving system allows actually quick tire changes during cross-country occasions, letting you return regarding track simply speaking timeframe as you are able to.
Drive Belt System
The Serpent 966 utilizes three Kevlar-reinforced primary drive belts, driven by several composite pulleys set up on aluminium pulley adapters. This allows for an extremely smooth and efficient drive system that will withstand severe punishment.
motor Mono block
The strong engine mono block that takes benefit of the excess space where in fact the motor is made on LCG (minimal Center of Gravity) framework dinner. In addition due to the fact the benefits of the mono block system, to stop the motor flexing, the block enables the motor become mounted paid off the chassis by 2mm. As a result of engine being lowered the auto has become supplied a substandard diameter flywheel.
Centax-II Clutch
The Centax-II clutch system features big ball bearings (a 5x13mm and a 5x10mm) also a sizable thrust bearing (5x10mm). This increases durability and you will be providing ultra-free motion of elements. Featuring an externally-adjustable clutch gap spacing technique, and a cutting-edge pivoting flyweight system.
Exhaust Mounting Spring
utilizing a spring-type mounting cable to separate your lives vibrations, the springtime is connected on vehicle through an aluminium mounting post linked to the environment supper.
Gearbox
The 2-speed gearbox is battle proven and it's also a breeze to change and build due to the effortless design. The gearbox features big ball bearings (a 6x10mm and a 6x13mm) for additional durability and smoother rotation. The gears are installed towards the businesses with three small screws and may also be located towards the complete number of gears for sale in combination with pinions the Centax-II clutch.
Bearings
provided with sealed top-quality lightweight bearings throughout, the drive train is very efficient and runs really efficiently.
30 bearings totally including 3 one-ways.
Adjustment
The Serpent 966 is a top-level competition racer that'll be consequently completely adjustable. The racer can modify many settings efficiently and effortlessly, for instance the suspension system system geometry. The down stops might just accessed and easily modified with maximum effect. Caster, track-width, toe-in, camber, camber increase, and wheelbase can also be modified effortlessly, as well as the front component and straight back roll-centre and back body mount mounting angle.
Adjustable Wheelbase
due to the leading wishbone setup, you can quickly adjust the car's wheelbase through keeping of just one top and paid off caster clip for each part in regards to the vehicle. In the backside you should spot shims appropriate right ahead or within backside of this back wishbones to obtain plus or minus 3mm.
