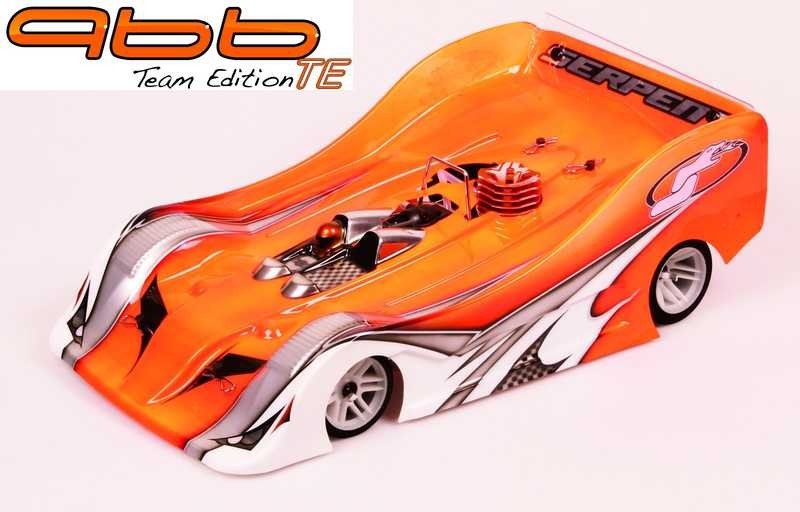

Serpent 1/8 scale 4wd gaspowered rushing car framework in Team variation. Serpent 966 could be the next generation race-car based on the exceedingly successfull Serpent 960 platform.
Specs:
- Course: 1/8th scale gasoline on-road, IFMAR guidelines
- work: High-end competition
- Major games: 2.520kg (centered on radio gear)
- fat: 260mm - 266mm
- Track-width straight back: 250mm - 260mm
- Track-width front part: Adjustable 296 - 300mm +/-1.7mm
- Wheel base: Adjustable +/- 3mm (backside)
- Chassis: 5mm 7075 aerospace quality aluminium, precision CNC machined
- Radio dish: 2.5mm carbon fibre
- Suspension: Independent increase wishbone suspension
- Shock absorbers: RCC-X shock absorbers, pre put together
- vehicle's gas tank: 125cc design
- Back axle: Solid back once again axle
- Front axle: Aluminium front component axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax-II clutch system, difficult anodized alu. gears 16-19T std
- Directions: complete color directions and Set-up guide
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and back roll centre
- maybe not Included: motor, pipeline, human anatomy, radio gear, tires, tires, battery pack
Features:
- SL8 gearbox included, for repaid inertia
- front component aero bumper
- split-type carbon radioplate with flex-control, and front part stiffner/support
- fresh front part top geometry with internal pivots more away and faster top hands, for a whole lot more component entry hold and lots of other products component price
- brand-new backside top geometry wth fresh camber-bracket, and top camber-rods instead wishbone
- backside reduced shockmounts/extenders in carbon, for unique shock-angle
- fresh design tank-top/tank-cap ( the same as S811 )
Backside Suspension
A corner end geometry provides exemplary tail grip and will be offering an extremely stable vehicle both under stopping alongside at making corners. The OS 2 uprights sport small bearings to cut back un sprung fat, 3 upper supply mounting functions along with the possibility to make use of shims for changing the roll facilities. Strong paid off wishbones with enough product on pivot pin and pivot balls, as well as the top fingers enable effortless modification the camber and camber enhance. Longer human anatomy mount fingers provide more down force towards tires yet don't possess binding because of their mounting spot. Back Body Mount
a large part human body mount regarding Serpent 966 might be linked in many other ways to enhance or reduce the downforce sent through human anatomy on back tires. There are much longer human body mount arms, being installed towards a big component uprights at axle level which provides more down force toward tires. The whole create may be without binding, meaning there is no limitation linked to motion on suspension system system system.
Right back Anti-roll Bar
The cable type backside anti-roll club regarding Serpent 966 is ball-raced for additional accuracy and lots of other activities precision.The blade type right back anti-roll club is optional.
Adjustable back Roll Center and Camber Increase
concerning the Serpent 966-TE a large part roll centre is adjustable by making use of offset composite inserts, which spot the wishbone pivot pins linked to paid off wishbones.The straight back camber enhance may also be modified through same technique but regarding top rear wishbone pivot pins. The usage of composite inserts means both alterations might be merely made track part.
right back Axle
made from Spring steel, the solid rear axle is very durable and ultra strong supplying a perfect base to install a sizable component drive pulley. A steel pin secures the pulley and an o-ring keeps it constantly in place.
Steering Servo Mounting
The steering servo is set up concerning the appropriate component directly to the lower concerning the radio supper and hangs minus the virtually any item. The steering system utilizes a centrally set up servo-saver, which features adjustable spring stress and includes four Ackerman alternatives, utilizing inserts, to help fine-tune the 966-TE steering faculties. Adjustable steel track rods with left and right threads are standard.
Receiver Mounting
The receiver in the Serpent 966 might be installed in 2 different functions, relative to whether you decide on the laydown throttle servo mounting and/or conventional upright throttle servo mounting.
In the event that you mount the throttle servo utilising the laydown setup, the receiver is set up regarding left component for this radio dish, relating to the car's vehicle's gas tank and exhaust system.
In the event that you mount the throttle servo utilising the traditional upright configuration, the receiver (and protective target) might be installed nearby the throttle servo.
The main advantage of these alternative mounting functions can it be offers choices for gadgets positioning, alongside alternatives for eliminating any recurring disruption conditions which will perhaps happen.
car's vehicle's gas tank
Serpent have in fact really in fact offered the 125cc gas tank with a silicone rubber seal the car's vehicle's gas tank lid that stops leakage therefore provides more constant motor performance. Crafted from silicone synthetic, the most up-to-date seal was in fact shaped to help make a great seal round the opening in regards to the tank and allowing the tank lid to shut totally.The tank is constructed of a newer stronger material. The tanks do have more opposition to shattering in the eventuality of huge impact and customizations towards the lid pivot pin spot further guarantee a totally sealed tank. The newest item can also be less heat delicate and could keeps it contour better additionally whenever hot. The tank provides the chance to install small spacers inside to fine-tune the total amount.
back Shock Tower
a considerable part surprise tower concerning the Serpent 966 is made up of 3mm carbon dietary fiber, which yet again makes this component ultra crash resistant. The trunk surprise tower tasks 4 surprise mounting jobs that may help you fine-tune your cars managing track component.
Fast publish Wheel System
The Serpent 966-TE comes standard with both spring-loaded aluminium fast introduce levers.
Quick-change
This dependable and time-saving system permits extremely swift tire modifications during x-country occasions, allowing you to reunite in track in just a bit time that you can.
Adjustable Wheelbase
As a consequence of the key wishbone setup, you'll be able to quickly adjust the car's wheelbase through sustaining of only 1 top and paid down caster clip for each component towards vehicle. Towards back you are going to place shims in-front or through right back associated with the paid backside wishbones to own plus or minus 3mm.
Modification
The Serpent 966 is a top-level competition racer that is for this reason totally adjustable. The racer can transform numerous settings effectively and effectively, for instance the suspension system system system system geometry. The down stops is accessed and modified with maximum effect. Caster, track-width, toe-in, camber, camber enhance, and wheelbase may also be modified effortlessly, besides the front side and right back roll-centre and back human anatomy mount mounting angle.
Bearings
offered sealed top-quality lightweight bearings throughout, the drive train is very efficient and runs extremely smoothly.
30 bearings in general including 3 one-ways.
Gearbox
The SL8 2-speed gearbox is battle proven and it is easy to adjust and build due to its effortless design. The gearbox features big ball bearings for extra durability and smoother rotation. The 8mm shaft offer increased safety.The fresh 2-speed gears are setup towards providers with three small screws and are also accessible in an overall collection of gears for sale in combination with pinions the Centax-II clutch.
High Res pic - Exhaust springtime
Exhaust Mounting Spring
using a spring-type mounting cable to separate your life vibrations, the springtime is associated with your automobile through an aluminium mounting post connected to the atmosphere dish.
Centax-II Clutch
The Centax-II clutch system features big ball bearings (a 5x13mm and a 5x10mm) additionally a large thrust bearing (5x10mm). This increases durability and ultra-free motion of elements. Featuring an externally-adjustable clutch area spacing technique, and a forward thinking pivoting flyweight system.
Engine Mono block
The strong engine mono block that takes advantageous asset of the surplus area where in fact the motor is established on LCG (minimal Center of Gravity) framework meal. Although the benefits of the mono block system, to quit the engine flexing, the block allows the engine become create lower in the framework by 2mm. As a result of engine being lowered the car is actually offered an inferior diameter flywheel.
Drive Belt System
The Serpent 966-TE makes use of three Kevlar-reinforced primary drive belts, driven by many composite pulleys attached to aluminium pulley adapters. This enables for a tremendously smooth and efficient drive system which may withstand serious punishment.
Throttle Servo Mounting
The 966-TE provides two possibilities the mounting regarding the throttle servo, to begin which will be the the standard stand-up throttle servo layout. To cut back the automobiles centre of gravity there is also an alternate to setup the throttle servo in buddies down configuration. This moves the hefty engine and various components of the servo reduced along with the within enabling better fat circulation and C of G.The set along throttle servo installation should match the conventional servo mounting space, thus permitting the simple modification over between designs. In the event that you elect to utilize the old-fashioned upright mounting, it is possible to install the receiver nearby the throttle servo. Otherwise the receiver is in its standard location concerning the remaining section of this radio plate.
Chassis Stiffeners
Another function would be the two carbon-fibre part mounted framework stiffeners. These dishes form a good connection in the middle of your front part and right back part of the 960, and they are also frequently mounted right to r / c dish bracket also to the trunk bulkheads. They boost the framework tightness, an essential condition to help with making effective use through higher-level suspension system system system system modification choices. The rest of the framework stiffener doubles as a belt-tensioner owner to with a lengthier slot enable changes.
Front Anti-roll Bar
The Serpent 966-TE comes standard with a variable front side anti-roll club. By rotating both blades, you will adjust the tightness. Centering with an advanced adjuster eccentric.
Front Axle
Leading axle is constructed of high-grade aluminium possesses the greatest quality one-way bearings lubricated with one-way lube. This guarantees a frequent drive on front Spring steel drive cups.
principal straight back brackets
Anodized, cnc machined, aluminum main rear axle supports with coated alu eccenters; more rigid, better straight back axle assistance for an incredibly genuine operating right back shaft, simple belt-tensioning, quick access for upkeep. Utilising the eccenters you can actually choose 3 jobs for rear- gear tensioning. By detatching the eccenter utilizing one side the trunk shaft with pulley and gear may be accessed quickly. Major straight back helps are machined maximum to repaid fat, but retain rigidness at the same time. Pins are pre-pressed to the base with this brackets which in turn seat towards positioning holes inside framework. Precise and safe.
Enhanced RCC Shock Absorbers
The RCC shock absorbers are super-smooth and intensely quite simple to generate. Machined from metal and unique because the surprise systems only available towards bottom half, they are in fact an easy task to assemble. They include an assortment piston no more usage a diaphragm just as the last shocks but a foam. The effect is an ultra-smooth and air-free shock absorber as a result of self-bleeding system included toward design.The seal-package to the shocks is enhanced ( unique x-ring / bushing) while offering better support on pole. Little modification, BIG benefit.
Lower mounted brake-assembly for paid off LCG. Spring-loaded brake-plates slides on polished steel shafts. Ready-to-run stopping system plate/pads construction with completely new friction stopping system product. The ball-raced difficult anodized brake-cam push the two bigger pins which can be seated in the aluminium bracket, facing the brakeplat, generate actually smooth alongside force towards dish.
Brake-system
The braking system system guarantees strong and efficient stopping power. The stopping system pads consist of two metal dishes using the friction material pre-baked towards meals, together with stopping system disk is manufactured out of double ventilated discs with an air-cooling alu centre.The groundbreaking stopping system sits reduced in the vehicle to greatly help LCG. The unit is effectively accessable for upkeep, because really available design.
The spring-loaded bar-pads slip on polished steel pins and generally are also triggered through the ball-raced braking system cam, a considerable pin moves horizontally to stimulate the stopping system system. As a result of the horizontal action of pin, and never the twisting of brake cam, all distortion of the type is eradicated plus the stopping system pads are evenly pressed together. The brake cam is supported by ball-bearings for smooth, accurate action. This further enhances the accuracy and exceptional stopping energy connected with stopping system.
Chassis Dish
The backbone associated with vehicle could be the framework dish, which include been CNC-machined from extremely rigid american 7075 T6 - 5mm aerospace-quality aluminium and recreations a diverse front component just starting to handle top anti-roll club. A cooling slot beneath the engine assists help temperature control while chamfered sides stop the framework from getting on kerbs providing it better basic ground approval regarding track. It houses the power packs, that is installed to the newly-designed carbon fiber battery mounting dinner and is held make by four screws, screwed straight to the framework dinner it self. This 966-TE supper additionally is machined to just accept the optional front component stiffener meal.
Front Bumper and Body Mount
top human anatomy mount of Serpent 966 is screwed reduced coupled with bumper, enabling several flex in the torso post mounts whilst maintaining the tightness linked to fundamental installation. The body mount is held further through two screws mounted from part.As using the back roll centre, one of the keys roll centre can be easily modified. The modification is completed by eliminating leading top suspension system system brackets and placing spacers in the brackets thereafter re-attaching them towards vehicle.
The 966 comes with anodised aluminium front component top suspension system brackets being machined from small aluminium. These appealing pieces are extremely strong and provide great security in case there is much effect. Another great benefit of this part is because of the use of inserts, with an offset opening, you can adjust the pivot spot related to top front part wishbones.
Another good design function is the fact that exact same front suspension system bracket might be applied to both remaining and right edges concerning the automobile.
Thew amazing aero bumper can be utilized closed, or partially available, by reducing the aligned inner components.
Steering Obstructs
These Wide offset (WOS) steering obstructs works extremely well in 2 various designs by swapping the medial component connected to car they truly are typically create on. These customizations, based separately the steering obstructs are employed on, will either provide more change in on component entry, or maybe more on energy steering at part exit.
The included eccenters be sure the axle is raised above centre line, which improves the consequence because of this groundbreaking setup and because of the utilization of eccenters the bearings are now in addition smaller and lighter, reducing un sprung fat.
Front Suspension System
the most effective anti-roll club levers, which are generally utilising the down stops permitting easier tweak. They place inwards, inside bearing-blocks, making them more efficient considering less flex. The greatest repaid hands manage leading anti-roll club destination.
Battery Mounting Plate
The carbon fibre battery mounting meal was created to really have the capacity to accommodate a number of battery power configurations, as an example the main-stream 5 mobile pack. The battery power mounting dish includes a 2mm black colored carbon fiber which can be installed towards framework dinner by four countersunk screws.
Radio Plate assist Bracket
the atmosphere meal help bracket, place directly at engine, moreover will become the mounting point for the roll over club.
Aluminium center bracket
The Serpent 966 comes supplied an aluminium center bracket as standard. Changing the conventional composite variation, the present component is stiffer consequently decreases flex within axle which prolongs residing of belts and pulleys.
Adjusting nut for pivot balls
These adjusting nuts are produced from Nylon and alter the sooner aluminium nut with synthetic insert that will not merely makes installation easier, in addition decreases un-sprung fat. Reducing the elements used now additionally decreases component perform therefore it produces a much more accurate management car and also as the product utilized is self-lubricating the motion of pivot ball is smooth throughout usage.
Pivot Balls
made out of Spring steel, these polished 8.5mm pivot balls are practically unbreakable and guarantee the smoothest suspension system system motion feasible.
Driveshafts / wheelaxles
Serpent simply utilize the highest-quality drive train inside their vehicles. The 966 car comes provided top springtime metal drive shafts capable of withstanding constant punishment; these shafts are ultra durable and extremely rigid assisting you to truly place your capacity to your tarmac.
Front CVD and straight back regular dogbones
created from Spring steel, leading and right back wheel axles are especially durable and ultra strong. They're typically a precision complement the largest thing bearings whenever mounted along with the provided shims to be sure a great precise wheel fit. The most effective axle also accocunts the main CVD shafts that can easily be one kit and might consequently be used with both supplied fast launch system and/or optional wheel peanuts.
Front Shock Tower
Leading shock tower linked to Serpent 966 consists of 3mm carbon fibre, making this component ultra crash resistant. The key surprise tower in addition features two surprise mounting jobs to help you fine tune your vehicle or vehicle for just about any track conditions.
Adjustable Front Belt Tension
an excellent function may be the power to adjust the stress applying this front side part gear. The simple-to-use bearing eccentric holders make it possible for simple and easy fast environment.
The 966-TE features a split sort radioplate. The more expensive main elements links with a pole to your front component stiffner. The primary component front part screws which url towards bulkheads could possibly be loosened to help make more flex; the pole gets a handle about the flex.
evaluation revealed that flex inside front side has more impact compared to the back or main portion of the framework.
The 966-TE included the modern developed Serpent gearbox with 8mm shaft and brand new flange, bell and gears. a totally balanced gearbox with suprisingly low inertia, and a great bearing sitting.
Durable and ultra fast shifting.
The brake-disk and pulley-adaptor with 3 pins is modified, and a fresh alu hardcoated component pully in included to suit the 8mm shaft.
buttocks connectors
Tail connectors in artificial and alu, to influence tail flex.
