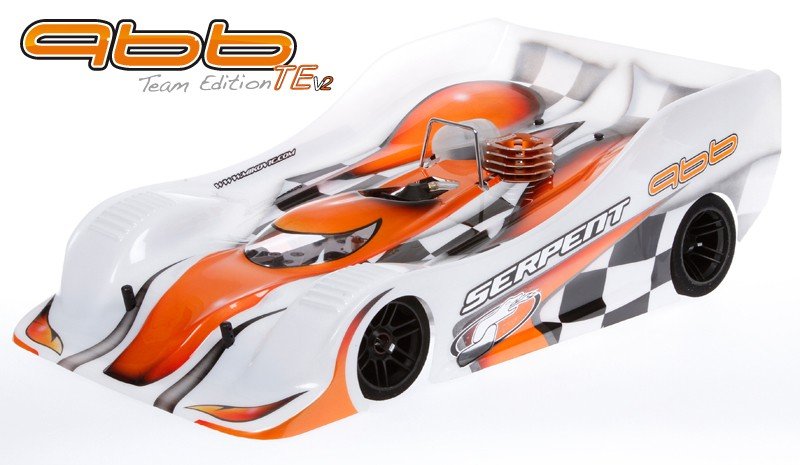

Serpent 1/8 scale 4wd gaspowered rushing car framework inside Team edition v2.
Specs:
- program: 1/8th scale fuel on-road, IFMAR directions
- function: High-end competition
- body weight: 2.520kg (according to radio gear)
- Track-width right back: 260mm - 266mm
- Track-width front: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, precision CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent enhance wishbone suspension
- Shock absorbers: RCM shock absorbers
- automobile's gas tank: 125cc design
- back axle: Solid back once again axle
- Front axle: Aluminium front side axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax genuine movement clutch system, difficult anodized alu. gears 16-19T std
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and straight back go centre
Features:
- Centax genuine motion clutch system
- RCM shocks
- SL8 gearbox included, for reduced inertia
- front part aero bumper
- split-type carbon radioplate with flex-control
- Brand brand-new front side top geometry with interior pivots more away and smaller top arms
- Brand groundbreaking right back top geometry wth fresh camber-bracket and upper camber-rods as an alternative wishbone
- Back reduced shockmounts/extenders in carbon
- Brand new design tank-top/tank-cap ( like S811 )
buttocks connectors
Buttocks connectors in plastic and alu, to influence buttocks flex.
Steering Obstructs
These Wide offset (WOS) steering obstructs works well in 2 different designs by swapping the medial component associated with vehicle they've been typically set up on. These customizations, based on their particular the steering obstructs can be employed on, will either present more improvement in on component entry, or maybe more on power steering at component exit.
The included eccenters make certain that the axle is raised a lot more than centre line, which improves the end result because of this fresh configuration and due to the usage of eccenters the bearings are in fact in addition smaller and lighter, reducing un sprung fat.
Front Bumper and Body Mount
the best body mount of Serpent 966 is screwed lower along with bumper, permits several flex in the body post mounts whilst maintaining the tightness from basic create. Your body mount is held further through two screws mounted through the part.As as a result of the back roll centre, leading roll centre could be effortlessly modified. The modification is finished by removing the best top suspension system system system brackets and placing spacers under the brackets and re-attaching them toward vehicle.
The 966 includes anodised aluminium front component top suspension system brackets which are generally machined from you tiny aluminium. These attractive pieces are incredibly strong and great protection in case of huge effect. Another great advantageous asset of this component usually because of the usage of inserts, with an offset opening, you can now adjust the pivot location the utmost effective front side component wishbones. Another good design feature is the proven fact that same front suspension system system bracket may be used in the left and right edges of the automobile.
Thew unique aero bumper can be utilized closed, or partially available, by eliminating the aligned interior components.
Chassis Plate
The backbone connected with automobile could be the chassis dinner, including been CNC-machined from extremely rigid american 7075 T6 - 5mm aerospace-quality aluminium and activities a thorough front side starting to change leading anti-roll club. A cooling slot in motor assists help temperature control while chamfered sides stop the framework from getting on kerbs supplying it better basic ground approval regarding track. It houses the battery, which are often set up towards the newly-designed carbon dietary fiber electric batteries mounting dish which can be held put up by four screws, screwed straight into the framework meal it self. This 966-TE dish has additionally been machined to simply accept the optional front side stiffener meal.
Brake-system
The stopping system system guarantees strong and efficient stopping energy. The braking system pads contain two metal dishes along with the friction item pre-baked towards dishes, combined with stopping system disk is comprised of twin ventilated discs with an air-cooling alu centre.The amazing stopping system sits reduced in the automobile to greatly help LCG. The machine is efficiently accessable for upkeep, because acutely open design.
The spring-loaded bar-pads wear refined metal pins and so are also triggered through the ball-raced braking system cam, a sizable pin techniques horizontally to stimulate the braking system system. As a consequence of the horizontal action through the pin, rather than the twisting of this brake cam, all distortion of this kind is eradicated and the braking system pads are evenly forced together. The stopping system cam is supported by ball-bearings for smooth, accurate action. This further escalates the accuracy and exemplary stopping power linked to the stopping system.
Brake 966
Lower mounted brake-assembly for reduced LCG. Spring-loaded brake-plates slides on polished metal shafts. Ready-to-run stopping system plate/pads assembly with new friction stopping system product. The ball-raced hard anodized brake-cam push both bigger pins which are seated within the aluminium bracket, from brakeplat, in order to make acutely smooth including force towards dinner.
RCM Shock Absorbers
The RCM surprise absorbers are super-smooth and intensely a simple task to create. Coated aluminium threaded shock-bodies, perfect pistons, smooth o-ring-bushing package, effective silicone membranes, durable hardened shock-rods, the works !
major right back brackets
Anodized, cnc machined, aluminum top right back axle supports with coated alu eccenters; more rigid, better right back axle help for a very genuine working right back shaft, effortless belt-tensioning, comfortable access for upkeep. Using the eccenters you are able to select 3 jobs for rear- belt tensioning. By reducing the eccenter for a passing fancy component a corner shaft with pulley and gear might accessed effortlessly. Significant right back aids are machined maximum to paid off fat, but retain rigidness besides. Pins are pre-pressed towards base of brackets which in turn seat in the positioning holes in framework. Precise and safe.
Front Side Suspension System
the key anti-roll club levers, that can be because of the down stops permitting easier tweak. They placed inwards, inside bearing-blocks, leaving them greater as a result of less flex. Leading reduced hands take care of the leading anti-roll club location.
Battery Mounting Plate
The carbon fiber battery mounting meal have already been developed to really have the capability to accommodate many battery power designs, like old-fashioned 5 cellular pack. The battery mounting meal is made from a 2mm black carbon dietary fiber also it's setup toward framework meal by four countersunk screws.
Broadcast Plate help Bracket
the atmosphere dish help bracket, spot right while you're viewing motor, moreover acts as the mounting point the roll over club.
SL8 gearbox
The 966-TE included probably the most up-to-date developed Serpent gearbox with 8mm shaft and amazing flange, bell and gears. a perfectly balanced gearbox with suprisingly low inertia, and outstanding bearing sitting.
Durable and ultra fast shifting.
The brake-disk and pulley-adaptor with 3 pins had been modified, and a whole new alu hardcoated part pully in included to complement the 8mm shaft.
Split-type radioplate
The 966-TE features a split kind radioplate. The bigger costly primary parts links with a rod towards front side stiffner. The primary component front side screws which link toward bulkheads is loosened to come up with more flex; the pole could possibly get a handle about the flex.
evaluating unveiled that flex inside front component has more impact set alongside the trunk or top an element of the framework.
Adjustable Front Belt Tension
good feature will be the capacity to modify the worries concerning the front gear. The simple-to-use bearing eccentric holders allow simple and easy quick environment.
Front Shock Tower
Leading shock tower of Serpent 966 is constructed of 3mm carbon fiber, causeing the component ultra crash resistant. The true secret surprise tower also features two surprise mounting jobs to assist you fine tune your vehicle or vehicle or vehicle or car for just about any track conditions.
Driveshafts / wheelaxles
Serpent simply utilize the highest-quality drive train inside their automobiles. The 966 vehicle comes supplied perfect Spring metal drive shafts good at withstanding constant punishment; these shafts are ultra durable and extremely rigid enabling you to place your capacity towards tarmac.
Front CVD and back regular dogbones.
Created from Spring metal, leading and back wheel axles are especially durable and ultra strong. They are a precision complement the biggest thing bearings whenever installed utilizing the supplied shims to be sure a significant precise wheel fit. Top axle additionally comprises part of the CVD shafts being included in this kit that can as a result be properly used with the provided quick launch system and/or optional wheel nuts.
Pivot Balls
created from Spring steel, these polished 8.5mm pivot balls are practically unbreakable and guarantee the smoothest suspension system system system motion feasible.
Adjusting nut for pivot balls
These adjusting peanuts are produced from Nylon and alter the earlier aluminium nut with artificial insert that'll not just makes installation easier, it decreases un-sprung fat. Reducing the components used now in addition decreases component perform such that it creates an even more accurate control vehicle so when the product used is self-lubricating the motion because of this pivot ball will always be smooth throughout use.
Aluminium center bracket
The Serpent 966 comes supplied with an aluminium center bracket as standard. Changing the conventional composite variation, todays component is considerably stiffer and thus decreases flex within axle which prolongs lifespan of belts and pulleys.
Front Axle
leading axle is manufactured from high-grade aluminium and possesses the most effective quality one-way bearings lubricated with one-way lube. This ensures daily to day drive on front Spring Steel drive cups.
Front Anti-roll Bar
The Serpent 966-TE comes standard with an adjustable front part anti-roll club. By rotating the 2 blades, it is actually quite simple to regulate the tightness. Centering with a classy adjuster eccentric.
Chassis Stiffeners
Another function could be the two carbon-fibre component mounted framework stiffeners. These meals form an excellent connection concerning the front part and right back an element of the 960, and therefore are often create to r / c meal bracket along with a big component bulkheads. They boost the framework tightness, an important condition generate effective utilization of higher level suspension system modification alternatives. The left chassis stiffener increases as a belt-tensioner owner to with a lengthy slot enable improvements.
vehicle's vehicle's gas tank
Serpent need actually provided the 125cc vehicle's gas tank with a silicone synthetic seal the automobile's gas tank lid that stops leakage so provides more constant engine performance. Created from silicone synthetic, the most recent seal is shaped generate a fantastic seal through the opening of this tank and enabling the tank lid to shut completely.
The tank is manufactured from an even more present more powerful product. The tanks have significantly more opposition to shattering in case of huge effect and corrections on lid pivot pin spot further make sure a perfectly sealed tank. This brand-new product are often less heat painful and sensitive and will keeps it contour better also whenever hot. The tank provides the replacement mount little spacers inside to fine-tune the quantity.
Receiver Mounting
The receiver on Serpent 966 could be installed in 2 different positions, influenced by whether you select the laydown throttle servo mounting and/or main-stream upright throttle servo mounting.
In the event that you mount the throttle servo utilising the laydown setup, the receiver is attached to the remaining part concerning the radio meal, involving the car's vehicle's gas tank in addition to the exhaust system.
In the event that you mount the throttle servo utilizing the old-fashioned upright setup, the receiver (and protective address) are installed beside the throttle servo.
The advantage of these alternative mounting functions is it includes options for gadgets positioning, also options for eliminating any recurring disturbance problems that may occur.
Steering Servo Mounting
The steering servo is attached to the maximum component straight to underneath towards radio plate and hangs without other product. The steering system utilizes a centrally arranged servo-saver, which features adjustable springtime anxiety and it's also provided with four Ackerman options, by making use of inserts, to help fine-tune the 966-TE steering traits. Adjustable metal track rods with staying and right threads are standard.
back Axle
crafted from Spring metal, the solid back axle is very durable and ultra strong providing a fantastic base to include the trunk drive pulley. A steel pin secures the pulley and an o-ring keeps it constantly set up.
Adjustable back Roll Center and Camber Increase
in regards to the Serpent 966-TE a large part roll centre is adjustable making use of offset composite inserts, which spot the wishbone pivot pins the paid down wishbones.The right back camber enhance is modified through exact same technique but about the top back wishbone pivot pins. The use of composite inserts means both corrections may be simply made track component.
Straight back Anti-roll Bar
The cable kind back anti-roll club in to the Serpent 966 is ball-raced for extra accuracy and even more precision.The blade sort backside anti-roll club is optional.
Back Body Mount
a huge part human anatomy mount within the Serpent 966 may be linked in a lot of various ways to boost or reduce steadily the downforce sent from human body toward straight back tires. You will find longer human anatomy mount fingers, which is installed towards backside uprights at axle level which provides more down force towards tires. Your whole installation can also be without binding, meaning there's absolutely no limitation of movement regarding suspension system.
Rear Suspension System
a big part end geometry provides exemplary buttocks hold and will be offering a tremendously stable car both under stopping and at exiting corners. The OS 2 uprights sport small bearings to attenuate un sprung fat, 3 top supply mounting functions along with the possibility to utilize shims for changing the roll facilities. Strong repaid wishbones with sufficient item through pivot pin and pivot balls, as well as the upper fingers enable effortless modification concerning the camber and camber enhance. Longer human anatomy mount hands offer more down force towards the tires yet haven't any binding for their mounting location.
back Shock Tower
The trunk surprise tower of Serpent 966 is composed of 3mm carbon soluble fiber, which yet again makes this component ultra crash resistant. A corner shock tower tasks 4 surprise mounting functions to utilize you fine-tune your cars handling track component.
Fast launch Wheel System
The Serpent 966-TE comes standard with both spring-loaded aluminium fast launch levers.
Quick-change
This dependable and time-saving system enables extremely quick tire alterations during cross-country races, enabling you to return on course in only a little bit time as you can.
Adjustable Wheelbase
as a result of leading side wishbone configuration, you'll be able to effectively adjust the car's wheelbase through placement of 1 top and paid caster clip for every part of this vehicle. Inside rear you are able to spot shims in-front or in right back connected with back wishbones for plus or minus 3mm.
Throttle Servo Mounting
The 966-TE provides two opportunities the mounting in regards to the throttle servo, firstly that will be the the first stand-up throttle servo layout. To reduce the cars centre of gravity there was an alternate to install the throttle servo in a lay out setup. This moves the heavy motor and also other components of the servo paid and to the inside permitting better fat blood supply and C of G.
The construct throttle servo create is made to match the conventional servo mounting area, therefore allowing the simple modification over between designs. If you select the old-fashioned upright mounting, it is possible to install the receiver next to the throttle servo. Otherwise the receiver is in its standard invest all of those other component pertaining to radio dinner.
Drive Belt System
The Serpent 966-TE makes use of three Kevlar-reinforced primary drive belts, driven by some composite pulleys set up on aluminium pulley adapters. This permits for a really smooth and efficient drive system that might withstand serious punishment.
Engine Mono block
The strong motor mono block that takes advantageous asset of the surplus area where in actuality the motor is established regarding LCG (minimal Center of Gravity) framework supper. Too since the advantages of the mono block system, to get rid of the engine flexing, the block allows the motor be installed reduced the framework by 2mm. Due to motor being lowered the car receives a substandard diameter flywheel.
Centax True motion Clutch
Serpent gift suggestions brand new Centax clutches for 1/8 onroad. Numerous variations happen tried, in final result it still comes near the initial idea.within the current development the tapered kind is relocated from flywheel towards force dish as a substitute, improves punch and dependability. Serpent continues the use of the hard Centax springtime to generate preload, following the less critical and faster to manage.
The 1/8 scale Centax genuine motion clutch, gets the black colored colored colored colored footwear and aluminum cutch housing as standard. Yellowish and red footwear is tried aswell, as well as the metal or light metal clutch housing.
Exhaust Mounting Spring
using a spring-type mounting cable to separate your lives vibrations, the springtime is from vehicle in the shape of an aluminium mounting post connected to the atmosphere dinner.
Gearbox
The SL8 2-speed gearbox is race proven and it's also quite simple to modify and construct due to the effortless design. The gearbox features big ball bearings for additional durability and smoother rotation. The 8mm shaft offer increased security.The fresh 2-speed gears are put up towards providers with three tiny screws and they are for sale in the sum total selection of gears obtainable in combination with pinions the Centax-II clutch.
Bearings
Given sealed top-quality lightweight bearings throughout, the drive train is quite efficient and operates extremely efficiently.
30 bearings all together including 3 one-ways.
Adjustment
The Serpent 966 is a top-level competition racer that will be consequently completely adjustable. The racer can transform many settings effortlessly and effectively, like the suspension system geometry. The down stops is only accessed and modified with maximum impact. Caster, track-width, toe-in, camber, camber enhance, and wheelbase might be modified efficiently, combined with front part and straight back roll-centre and right back body mount mounting angle.
