Description

Introduction

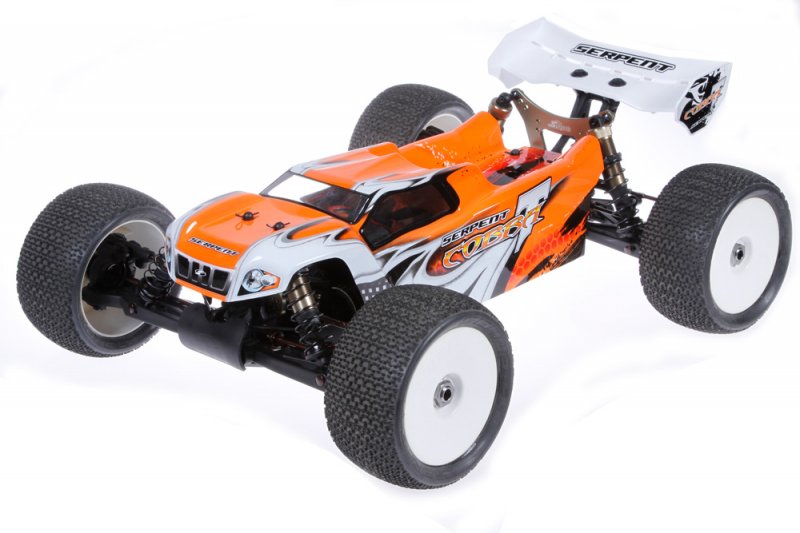

The Serpent Cobra E-Truggy in RTR trim is an incredible basher type vehicle that may you need to take numerous beating and its additionally a great package to start with genuine battle ! On the basis of the Cobra E-Truggy it is the outright rate, great handling, dependability, rigidness and durability you need.

The RTR package is dialed:
-factory put together rushing chassis
-prepainted and precut low sort truggy human body and big composite rear wing
-premounted truggy tyres/wheels/inserts
-pre-set 4S to 6S capable waterproof 150A speedo ( DragonRC)
-2000kv brushless longbody motor (DragonRC)
-Digital 2.4ghz transmitter (DragonRC)
-Metal gear servo 16kg ( DragonRC-Savox)
-3 oilfilled geardifferentials
-Big bore shocks with synthetic dustboots and machined aluminium shocktowers
-Spring steel transmission elements and turnbuckles, front part and straight back cvd driveshafts
-Front and straight back anti-roll bars
-Large battery-cases with effortless felcron straps
-Machined aluminium chassisplate
-Fully ballraced
-Batteries the automobile and transmitter are not included

The bodyshell comes into play orange, red, green, blue and red, plus a certain sort.

Serpent provides numerous optional elements as a result of this car to improve performance, lighter and on occasion even also for nicer appearance.

Main features

Car
Fully expert pre built and pre-set framework and electronic devices.

Transmitter
DragonRc 2.4 GHz steeringwheel type transmitter with lots settings and good range. Includes small and light receiver.

Speedo
DragonRC waterproof speedcontroller with a huge 150A power to handle the brushless motor and 4S or 6S battery pack power

Motor
DragonRC longbody 2000kV brushless engine with simple colorcoded connectors

Body
Prepainted and pre-cut low e-Truggy human body, in 4 primary colors orange, red, Green and Blue. ( additionally clear one available as optional)

Tyres
Premounted battle prepared tyres / wheels with soft substances and pintype profile for amazing grip.

Chassis
Very slim 3mm 7075T6 aluminium framework, with machining extraordinary face that makes it lighter in strategic areas also to get a grip on flex. Kick-up front side for appropriate landings. Angled part to enhance cornering approval, and safeguarded and simple mounting component guards with 5 screws. Countersunk holes, pouches to put the suspension system system brackets. As a whole the Truggy is built to keep the additional weight exceedingly main and near the centerline as you possibly can, create an excellent fundamental security.

Side guards / battery power trays
Durable shaped composite component guards / electric batteries trays that proceed with all the distinct the framework, and mount with 5 screws each component. Front and sides sufficient to put on the dust out. The guards/trays create numerous security. The batteries are create in longtudinal fashion, keeping the excess fat little in automobile. The battery pack trays features user friendly Serpent noticeable felcron TM straps to secure the batteries setup. Fits 2S and 3S batteries.

Motormount:
The engine is devote the many optimal destination inside vehicle, keeping motor-forces and transmission components / placement in your mind. Just one-screw must secure the BL engine, to your nicely created durable machined aluminium motormount. Area for extra motor-cooling available as needed. The area for the engine permits mounting all popular buggy and (monster)truggy motors.

Composite framework braces
Allows the framework to flex which assists improve bump maneuvering. Front and rear.

Front bumper
Nicely curved front part bumper, the same as regarding Cobra buggy, to safeguard leading anti-roll club, suspension system brackets, and moves inline with kick-up chassis front side for safe landings.

front side suspension
Very long and durable composite reduced wishbones, alongside top spring-steel trackrods. 2 paid down shock-mount jobs. Downstops can be used as needed. Pivotball kind anti-roll club rods.
.
Front steering / servo saver / angled
Innovative angled front side steering construction to scale back the angle of distinction in the middle of your complete total caster and steering airplane. As a result of this you will have less bump steer and a truer steering Ackerman through the complete number of suspension.

Adjustable springtime stuffed servo-saver system with interchangeable Ackermann meals. Utilising the design the steering bell cranks whenever changing the Ackerman you won't need to adjust your steering tie rods. You simply only will must adjust your end points in your radio.. super easy to achieve usage of and set-up.

The Inboard Bell crank keeps the lever and linkage in the vehicle. It will assistance with preventing problems for the steering system. Zero scrub radiuses on steering knuckle, assists in reducing the jacking effect made by your steering knuckle offset. It provides a direct fallen while maintaining the automobiles framework more degree while turning.

The front roll center is changed quickly by going the steering knuckle shims due to their appropriate locations.

Topped of with outstanding composite top-plate.

Front steering-block / c-hubs
Very durable front part steeringblock / C-hub setup .

Drive-shafts
very long and lightweight springtime steel items with pushed in metal pins, laser-engraved. Same size front and rear.

Wheel-axles / wheel-nut
Serpent springtime metal threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts to keep the huge truggy wheels/tyres on program.

Captured universal joints
Guarantees you'll finish a race without loosing a pin or set screw. All elements, axles and drive train elements have really in fact really capture pins

Front shocktower
Light, strong and durable machined 5mm aluminium devices with 5 jobs for shockangle.

Shock-set front part and rear
16mm big bore shocks, with hard anodized accuracy threaded shock-bodies. Shockboots in silicone synthetic to help keep the dust away . Chromed shock-shafts for supersmooth shockaction . The larger o bands provide less fundamental force and a greater seal without dragging concerning the shock shaft.

Suspension brackets
The hinge-pins / hingepin balls are captured in durable composite suspension system brackets . These capture the nylon roll-center inserts.

Anti-roll club / anti-roll club linkage with pivotball
The anti-roll pubs front and back are produced from top quality unique springtime metal, and they are also captured on diff-cased in ballbearing for perfect guidance and control.

Receiver package / servo mount / speedo mount
Composite one piece radiobox to securely install servoï¿½ s, speedo and receiver. For maximum safety the light receiver fits the top-case easy, with a small opening enabling cable to protrude. The speedo seats low on a plate just over the framework, for this reason brief cables enables you to the motor. The servo is set up in a vertical fashion.

Central diff
Optimised primary gear-diff with 50T super-hard spur-gear . Smaller, compact design to minimize rotating mass toward max.

Transmission shafts
Durable but light and slim Serpent springtime steel, laser etched shafts.

front part and straight back diff
Optimised gear-diff with superhard spur-gears . Small, compact design to cut back rotating mass towards optimum. Identical variation front side component and straight back. Diff coupler in spring metal seated in big barings for durability.

Rear shocktower
Light, strong and durable machined 5mm aluminum product with 5 functions for shockangle.

Rear uprights
Durable composite back uprights with 3 camber positions

Suspension brackets rear
Durable composite devices with eccentric inserts to improve set-up.

Rear wing mount
The composite straight back wing mount, allows to boost the angle of back wing.

Rear wing
Two stage high down force wing, has two levels of angle, that also includes 2 fins. Helps improve down force and right line capability

Bodymounts
Nylon bodymounts with wider sitting your body, securely fastened towards the shocktowers.

Super Minimal profile e-Truck Body
Improves appearance alongside keeps the profile minimum. Comes precut and prepainted.

Decals
Applied towards human body.

Oils / grease
Car is develop with a high quality silicone oils the diffs and shocks and black colored oil. Threadlock found in which required.

Manual
Full color manual showing the automobile, specifications, suggestions and exploded views. The transmitter and speedo have actually really in fact small split manuals included.

Box
Full color protective industry to re-use for car transportation or tyres.
