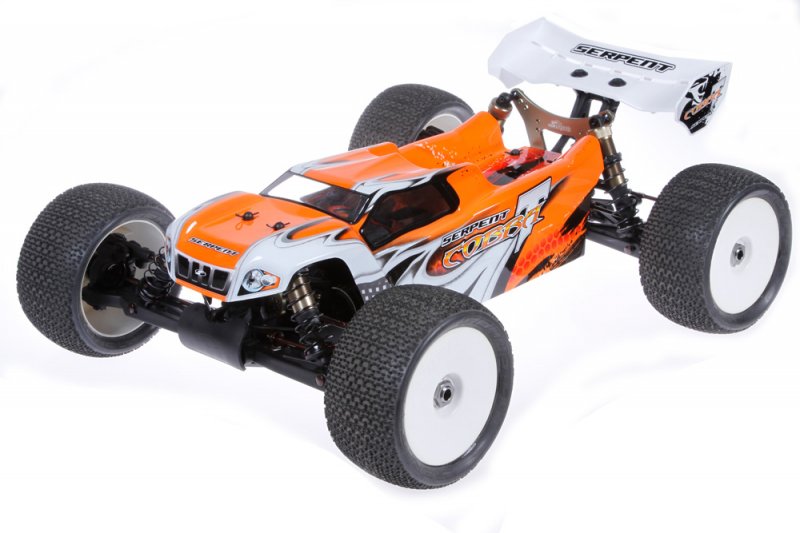

Serpent SER600039-O Serpent Cobra E-Truggy RTR Orange [SER600039-O]

Price:

NZD$618.08

Brand:

Serpent

Model:

SER600039-O

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Truggy - Electric Powered category

Write a review

Description

Introduction

The Serpent Cobra E-Truggy in RTR trim is a perfect basher kind vehicle which may just take countless beating and its particular furthermore a phenomenal package to start genuine battle ! Based on the Cobra E-Truggy oahu may be the outright rate, great control, reliability, rigidness and durability you need.

The RTR package is obviously dialed:
-factory assembled rushing chassis
-prepainted and precut low kind truggy human body and large composite rear wing
-premounted truggy tyres/wheels/inserts
-pre-set 4S to 6S capable waterproof 150A speedo ( DragonRC)
-2000kv brushless longbody motor (DragonRC)
-Digital 2.4ghz transmitter (DragonRC)
-Metal gear servo 16kg ( DragonRC-Savox)
-3 oilfilled geardifferentials
-Big bore shocks with synthetic dustboots and machined aluminium shocktowers
-Spring steel transmission parts and turnbuckles, front and straight back cvd driveshafts
-Front and right back anti-roll bars
-Large battery-cases with effortless felcron straps
-Machined aluminium chassisplate
-Fully ballraced
-Batteries the automobile and transmitter are not included

The bodyshell will come in orange, red, green, blue and red, including an evident kind.

Serpent provides many optional elements for this reason vehicle to boost performance, lighter and also for furthermore nicer look.

Main features

Car
Fully expert pre built and pre-set framework and electronic devices.

Transmitter
DragonRc 2.4 GHz steeringwheel sort transmitter with lots settings and good range. Includes little and light receiver.

Speedo
DragonRC waterproof speedcontroller with a massive 150A capability to manage the brushless engine and 4S or 6S battery pack power

Motor
DragonRC longbody 2000kV brushless engine with effortless colorcoded connectors

Body
Prepainted and pre-cut low e-Truggy human body, in 4 main colors orange, red, Green and Blue. ( additionally clear one available as optional)

Tyres
Premounted battle ready tyres / tires with soft substances and pintype profile for amazing grip.

Chassis
Very slim 3mm 7075T6 aluminium framework, with machining in regards to the top face making it lighter in strategic places and also to get a handle on flex. Kick-up front component for appropriate landings. Angled aspect of improve cornering approval, and safe and easy mounting component guards with 5 screws. Countersunk holes, pouches to place the suspension system brackets. In general the Truggy was created to keep the fat actually primary and towards the centerline that one may, in order to make an excellent safeness.

Side guards / electric batteries trays
Durable shaped composite part guards / battery trays that continue with most of the quantity of the framework, and mount with 5 screws each component. Front and sides enough to help keep the dust away. The guards/trays create countless security. The batteries are set up in longtudinal fashion, keeping the additional fat suprisingly low towards car. The battery trays features user-friendly Serpent noticeable felcron TM straps to secure the batteries set up. Fits 2S and 3S batteries.

Motormount:
The motor is invest many optimal location inside automobile, keeping motor-forces and transmission elements / positioning in mind. Just one-screw is important to secure the BL motor, to your nicely created durable machined aluminium motormount. Place for extra motor-cooling available as required. The area the engine permits mounting all popular buggy and (monster)truggy motors.

Composite framework braces
Allows the framework to flex which assists enhance bump control. Front and rear.

Front bumper
Nicely curved front part bumper, similar to to the Cobra buggy, to guard the very best anti-roll club, suspension system system system system brackets, and flows inline with kick-up framework front side for safe landings.

front part suspension
Very long and durable composite lower wishbones, in conjunction with top spring-steel trackrods. 2 paid shock-mount functions. Downstops may be used as needed. Pivotball type anti-roll club rods.
.
Front steering / servo saver / angled
Innovative angled front component steering setup to attenuate the angle of difference between quantity total caster and steering airplane. Consequently you need to have less bump steer and a truer steering Ackerman through the whole collection of suspension.

Adjustable springtime stuffed servo-saver system with interchangeable Ackermann dishes. Utilizing the design through the steering bell cranks whenever changing the Ackerman you may not must adjust your steering tie rods. You merely will nevertheless only need to adjust your end points within radio.. fairly easy to get involved with and set-up.

The Inboard Bell crank keeps the lever and linkage in car. It helps in preventing problems for the steering system. Zero scrub radiuses on steering knuckle, assists in reducing the jacking effect produced by your steering knuckle offset. It provides an even more direct dropped while maintaining the automobiles chassis more level while turning.

The front roll center are changed quickly by going the steering knuckle shims using their appropriate locations.

Topped of with a significant composite top-plate.

Front steering-block / c-hubs
Very durable front component steeringblock / C-hub installation .

Drive-shafts
very long and lightweight springtime metal products with forced in steel pins, laser-engraved. Same size front part and rear.

Wheel-axles / wheel-nut
Serpent springtime steel threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts to help keep the huge truggy wheels/tyres on program.

Captured universal joints
Guarantees you need to finish a race without loosing a pin or set screw. All elements, axles and drive train elements have actually really capture pins

Front shocktower
Light, strong and durable machined 5mm aluminium products and services with 5 jobs for shockangle.

Shock-set front part and rear
16mm big bore shocks, with hard anodized accuracy threaded shock-bodies. Shockboots in silicone synthetic to keep the dirt away . Chromed shock-shafts for supersmooth shockaction . Greater o bands offer less general force and a better seal without dragging into the shock shaft.

Suspension brackets
The hinge-pins / hingepin balls are captured in durable composite suspension system system brackets . These capture the nylon roll-center inserts.

Anti-roll club / anti-roll club linkage with pivotball
The anti-roll pubs front and back are made of top-quality unique spring metal, as they are furthermore captured regarding diff-cased in ballbearing for perfect guidance and control.

Receiver package / servo mount / speedo mount
Composite one piece radiobox to securely install servoï¿½ s, speedo and receiver. For maximum safety the light receiver fits the top-case effortless, with a tiny opening permitting cable to protrude. The speedo seats low on a plate right above the framework, for that reason quick cables allow you to the motor. The servo is installed in a vertical fashion.

Central diff
Optimised primary gear-diff with 50T super-hard spur-gear . Small, compact design to cut back rotating mass on max.

Transmission shafts
Durable but light and slim Serpent springtime metal, laser etched shafts.

front side and straight back diff
Optimised gear-diff with superhard spur-gears . Smaller, compact design to minimize rotating mass on maximum. Identical version front component and right back. Diff coupler in springtime steel seated in big barings for durability.

Rear shocktower
Light, strong and durable machined 5mm aluminum item with 5 functions for shockangle.

Rear uprights
Durable composite back uprights with 3 camber positions

Suspension brackets rear
Durable composite products with eccentric inserts to improve set-up.

Rear wing mount
The composite straight back wing mount, enables to boost the angle pertaining to back wing.

Rear wing
Two period high down force wing, has two examples of angle, that also includes 2 fins. Helps improve down force and right line capability

Bodymounts
Nylon bodymounts with wider sitting the human body, firmly fastened on shocktowers.

Super Minimal profile e-Truck Body
Improves look including keeps the profile minimum. Comes precut and prepainted.

Decals
Applied towards human anatomy.

Oils / grease
Car is made with a high quality silicone oils the diffs and shocks and black colored colored colored oil. Threadlock utilized in which required.

Manual
Full color manual showing the car, requirements, guidelines and exploded views. The transmitter and speedo have actually in fact in reality in fact tiny split manuals included.

Box
Full color protective package to re-use for vehicle transport or tyres.
