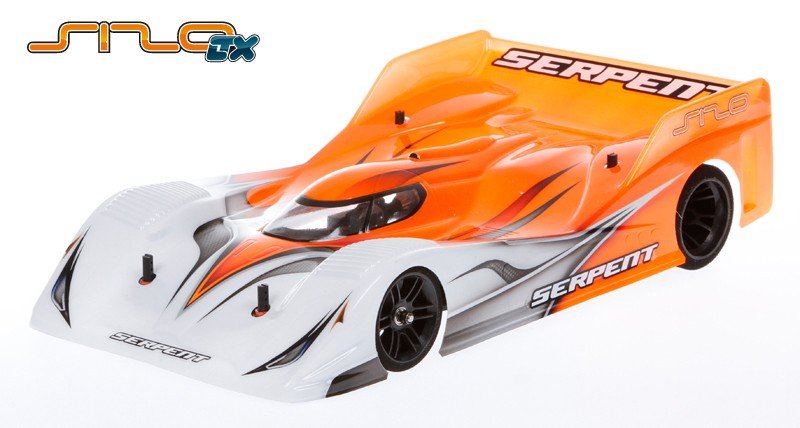

Serpent 1/12 scale pancar S120 LTX version. Upper end 1/12 scale pan framework, with nicely machined carbon fibre and aluminium components. Exemplary entirely adjustable front end creates countless steering. Spring loaded Link system, along with diagonal placed primary surprise and tube-system, controls the roll of vehicle. Well-balanced Lipo framework offers number of set-up features and alternatives to dial the automobile in ideal for any track. 2012 variation contains the main pivotpoint relocated 8mm towards front component and contains now a 2mm ( rather than 2.5mm before) framework and 2mm podplate for paid down center of gravity. Other carbon components relocated additionally modification.
Requirements:
- course: 1/12th scale
- Function: Competition pan vehicle
- Chassis: 2.0mm carbon fiber, Lipo
- back axle: Aluminium shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: main oil filled surprise absorber and pipelines
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front: 163mm +/- 3mm
- Track-width right back: 170.6mm
Features:
Front end
the best end from automobile features 11 different alterations for the many from your automobile, which may be easy to adjust and measure. Fixed paid suspension system system system arms take unique damped by the key strut making using synthetic o-rings to occupy the flex in this region, as the grey anodised aluminium front side top wishbone mounts can be found in different caster views, the automobile being provided 6 level variations as standard. Ride height spacers can be had too in 0.5mm and 1mm. Along with the steering block master pins springtime loaded, the cornering forces are channelled through top wishbone, that actually help the car to component at high prices.
Tube system
The S120-LTX uses pipelines to controll the roll the automobile. This technique plays a sizable part in the way the car becomes a large component which will effortlessly be modified with the use of different oils, 15.000 for normal hold and 20.000 for high hold songs.
Core area
The springloaded side-bars, one way links, are made of composite nylon and acquire a grip regarding the roll of this framework, utilizing the pipelines as well as the primary main surprise. Precision made springs and pivot balls.
The central component is a mixture of elements to modify the motions of this buttocks completely
- a central primary surprise, on the basis of the famous Serpent RCCX technology; the shocktower enables various perspectives.
- the anodised alu pipelines on both sides
- 2 springtime loaded shaped component pubs
These elements interact to create a fantastic control (roll, bump and positioning) under all grip-conditions.
Body post
For firmly mounting your body shell towards S120 LTX, the car has strong synthetic human anatomy articles front and rear. All 4 articles get with orange anodised adjustable collars to precisely adjust your body's height so the articles are supplied extra stretched allowing someone to cut these with regards along with their very own favored size. Leading body articles will also be built to help protect leading in regards to the carbon framework from splitting in case there was much front impact.
Servo saver
The S120 Link comes offered a high quality miniature servo saver, which making use of orange anodised shims, has adjustable Ackerman. The kit includes 2 alu servo articles, which permit an entirely focused mounting of any popular manufacturer servo.the small foam bumper ordinarily included.
Back axle mounts
The lightweight graphite straight back axle is mounted on bearings that sit within eccentric composite inserts enabling the client to capability to quickly change the right back journey height in regards to the car by changing between inserts. The kit comes offered all 9 inserts which differ between 0 and 4mm, each differing by 0.5mm and all sorts of sorts of kinds of are reversible for a straight wider variety of modification.
Right back ball differential
The S120 LTX comes supplied with a durable and high-end ball differential. Effectively modified by an artificial nut, available through back wheel, the diff uses top-notch metal balls and meals also it's given both suitable silicone and graphite oil to be used during installation and upkeep.The back diff features hardened D-plates and light alu shaft construction for super smooth diff action.
Central surprise absorber
to help back traction under acceleration as well as ingest bumps, the S120 LTX recreations a centrally put up surprise absorber. Provided a soft springtime, the pre load which may possibly be adjusted, the key mount for the surprise absorber works extremely well for adjusting a sizable part down end and choice of motion between framework and engine pod.
The primary shock is attached to a shock-tower with numerous functions available.
Right back motor pod, chassis
The strong foundation is done by the 2.0mm dense carbon fiber framework dinner produced such means your Lipo is set up in lateral directiom, and will be create either kept or right part, and room enough for the valuable devices. The aluminium / carbon motorpod is a beautifull mixture of quality machined aluminium brackets and exemplary carbon fibre elements, bolted together to make an ultra rigid backside pod. The modern motor-bracket permits the brushless engine be create in to the optimal place for vehicle protection and offers good temperature dissipation besides .
