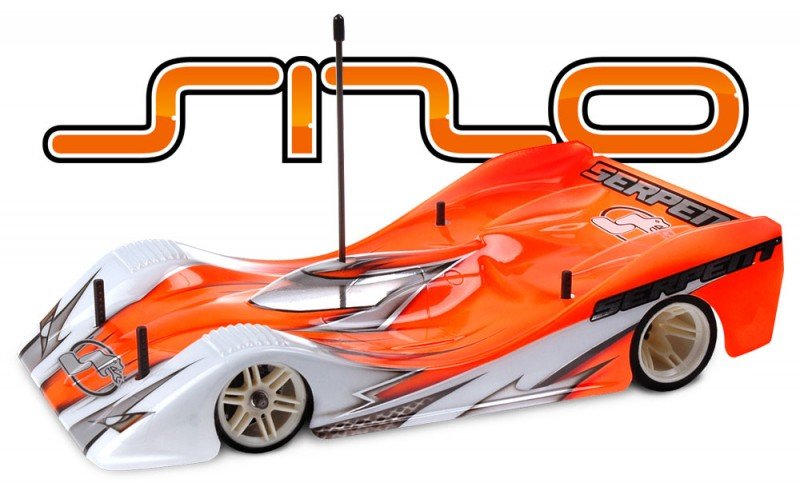

Serpent are especially happy to introduce the S120, the initial entry in resurgent 1/12th scale pan vehicle course. Made using quality components throughout, Serpent spent at some time inside confines of scale and course rules to come up with a real, high class and entirely adjustable chassis.
Requirements:
- program: 1/12th scale
- Function: Competition pan automobile
- Chassis: 2.5mm carbon soluble fbre, 4-cell, CNC machined
- back axle: Graphite shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: primary oil filled surprise absorber and lateral monoshock
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front component: 163mm +/- 3mm
- Track-width rear: 170.6mm
- Adjustability: Front Camber, Caster, Front Toe, Track width, Back ride height, T-bar tightness and Roll centers
- Weight: 840g - 4 Cells incl. BL system (varies influenced by gear used)
- guidelines: complete color guide and reference guide
- perhaps not included: engine, Batteries, Speed Controller, tires, human anatomy, steering servo, radio gear
Features:
Front end
Leading end in regards to the vehicle features 11 different corrections to acquire the different from your own car, being really quite simple to modify and measure. Fixed reduced suspension system system hands are on their very own damped by one of the keys strut which makes use of plastic o-rings to work with up the flex in this region, after the grey anodised aluminium front top wishbone mounts will come in different caster views, the auto being provided with 6 degree variations as standard. Using the steering block master pins springtime loaded, the cornering forces are channelled through top wishbone, that assist the car to part at high rates.
back engine pod
one of the most unique highlights of the S120 may be the back motor pod, that's been machined from only 1 block of high-quality aluminium. This, along with all design the pod, make certain that its completely aligned and extremely rigid, and thus all cornering forces are consumed by the automobiles 2 surprise absorbers. This engine pod generally speaking excessively strong and it's also consequently resistant to crash damage and tweaking that will are based on much impact. It has also been built to simply accept each one of today's brushless devices, with enough space to install the sensor and energy cables.
Tweak location
to greatly help change the car, and adjust the stress regarding straight back pod, the S120 features a tweak component allows easy tweak modification through utilizing grub screws that have been occur springtime steel blades. This system allows you to not only tweak the automobile but provides racer to ability to adjust the flex anxiety. Providing many settings, they may be effortlessly modified to the track through one screw which accessed through a slot in base of the framework dinner. The leading related to tweak part also doubles up as a mount the provided carbon antenna pole.
Monoshock
Another actually unique function of S120 is its laterally mounted drifting monoshock which dampens the flex between your framework as well as the engine pod. Mounted making use of ball bones through top of right back engine pod, both ends of surprise shaft are attached to the the top of back carbon human anatomy mount meal on framework, and so of its design most likely the tiniest of movements between front side and straight back associated with car is effectively consumed. This method plays a large component in how the auto may become a considerable component that may easily be modified by using different natural oils and surprise pistons.
Central surprise absorber
To assist back traction under acceleration and to ingest bumps, the S120 recreations a centrally installed shock absorber. Supplied with a soft blue springtime, the pre load which is modified, the main element mount with this particular surprise absorber may be used for adjusting the trunk down end and number of movement concerning the framework and motor pod.
back ball differential
The S120 comes offered a durable and effective ball differential. Efficiently modified by a synthetic nut, available through back wheel, the diff uses quality steel balls and dishes also it's given both suitable silicone and graphite oil become used during make and upkeep.
right back axle mounts
The lightweight graphite rear axle is attached with bearings that sit within eccentric composite inserts which allows you to capacity to easily and quickly change a huge component journey height of vehicle by simply changing between inserts. The kit comes provided all 9 inserts which vary between 0 and 4mm, each differing by 0.5mm and all sorts of kinds of forms of kinds of are reversible for a straight wider choice of modification.
Servo saver
The S120 comes given a superior quality miniature servo saver, which through application of orange anodised shims, has adjustable Ackerman. Further toward servo saver, the vehicle includes aluminium servo mounting articles that work an offset mounting opening into the base going for a more impressive range to just accept an ideal choice of servos.
Battery mounts
inside the S120, the cells are set up in 2 various functions by changing the composite battery pack insert mounting destination. Attaching it to your front part or backside the slot means the cells can pass 4mm, ideal for adjusting the vehicles fat blood circulation.
Body articles
For firmly mounting the human body shell towards S120, the automobile has strong synthetic human anatomy articles front and straight back. All 4 articles can be acquired with orange anodised adjustable collars to precisely adjust the human body's height as well as the articles can be found additional lengthy enabling you to cut them for his or her individual preferred size. The very best human anatomy articles are also meant to assist protect the very best linked to the carbon framework from splitting in the eventuality of much front impact.
