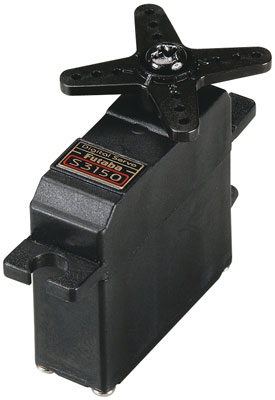

here is the Futaba S3150 Slim Digital Aileron Servo with J Connector.
Designed for aileron applications on gliders, jets, and electric planes.
This servo can cause high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, cause them to become capable
of delivering sufficient Amps.
QUALITIES: Coreless motor
2 ball bearings
Digitally enhanced microprocessors cut about half the end result time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Compact design is very suited to simple installation inside
the wing of smaller gliders, jets and electric planes.
Black artificial case
One year warranty
INCLUDES: One S3150 Digital Slim Digital Servo, one 1" (26mm) star shaped
horn, one 1.5mm (39mm) celebrity shaped horn, one 1.8" (45mm) straight
arm, one 1.4" (35mm) diameter horn, two each-screws, eyelets, and
grommets
SPECS: Speed: 0.25 sec/60 deg @ 4.8V
Torque: 51.4 oz/in @ 4.8V
Dimensions: 1.1x0.5x0.8 in (28x13x19.7mm)
fat: 0.78 oz (22g)
power: 4.8V (Futaba cannot suggest utilizing 6V)
FEEDBACK: S3150 Digital Servo Precautions,
-It is better to avoid long leads and Y-harnesses specially with
standard grade cables. If issues are experienced, begin thinking about using
heavy responsibility cable including Futaba's high quality show or Hobbico's
Pro Series,minimizing lead lengths, and/or removing Y-harnesses.
-Current Drain: This electronic servo is especially created for high-
torque or high-speed, this is why high present drain is normal
at startup. For ultimate performance whenever using this servo please
review these points.
1. Broadcast systems because of the Battery Fail secure function have in fact in fact a
higher cut-off voltage establishing that will cause shorter
operation time.
2. When developing the servo, please check pushrod linkage to
make yes there is no binding in order to avoid excessive
power use and minimize steadily the life associated with motor and
battery.
An e-mail on coreless engines. A typical servo motor has a steel
core armature covered with cable that spins inside magnets. In
a coreless design, the armature utilizes a thin cable mesh that kinds a
cup that spins round the not in the magnet eliminating the
heavy metal core. This design leads to smoother procedure and
faster effect time.
This electronic servo can't be found in combination because of the after * have been *
transmitters since the servo fundamental sign is: 1310us).
CONQUEST will always be, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), fresh Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they are going to work fine with present AM systems *****
