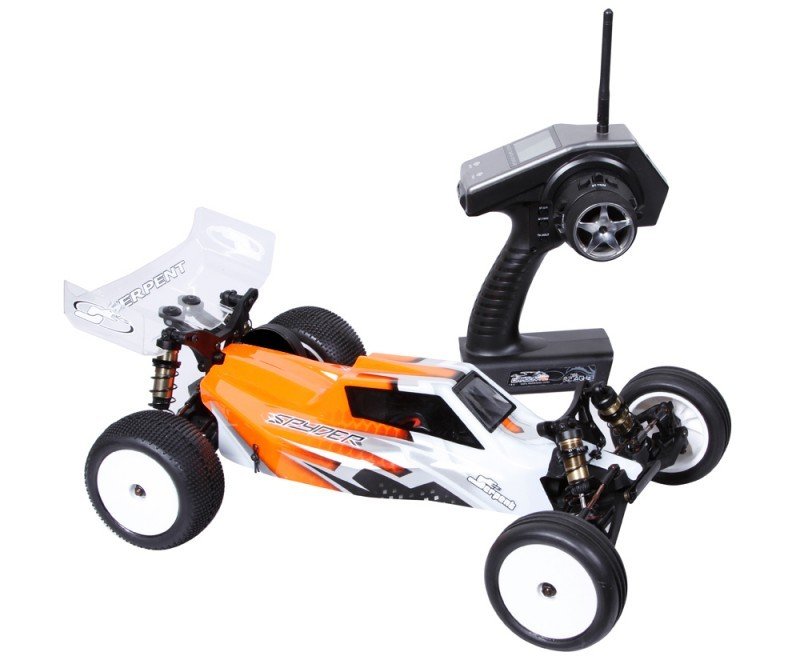

Spyder Buggy SRX-2 MM 2wd 1/10 RTR The RTR Spyder buggy will depend on the top of end competition kind of the Spyder Mid engine MM buggy and stocks numerous elements and geometry. All option the different parts of the battle variation alsof fit the RTR variation. Major features - ready to race - Prepainted and precut buggy human body - Dragon-RC 2.4 GHz transmitter TX-RX with LCD - Waterproof Electronic speedcontroller 45A - Brushless, sensorless motor 9T, 3000kv - specialist factory construction and set-up - Dragon-RC premounted buggy tyres - springtime steel transmission - Gear differential and solid slipper
Demands:
- Vehicle: Spyder SRX-2 Mid motor 2wd RTR
- Class: 1/10 buggy 2wd
- Degree: Hobby / Competition
- Length: 385mm
- Width: differs with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Body fat: varies with gear used
- Not included: TX battery power, vehicle battery, charger
Features:
- Willing to competition
- Prepainted and precut buggy human body
- Dragon-RC 2.4 GHz transmitter TX-RX with LCD
- Waterproof Electronic speedcontroller 45A
- Brushless, sensorless motor 9T
- specialist factory construction and set-up
- Dragon-RC premounted buggy tyres
- tricky composite framework and shocktowers
- Spring steel transmission elements
- Gear differential and solid slipper
- powerful competition geometry
- Rear motor design
- distinctive steeringblock design
- Big bore 12mm RCM type shocks with twin system
- noteworthy Steering ackermann
- Adjustable right back differential height
- Narrow composite framework design
- Low, cab ahead individuals anatomy
Framework
Composite framework meal with a design enabling an excellent fat safety, and optimal space the electronics, battery power and servo. Leading Kick-up angle inside Chassis includes more approval for battle and get for a lot more nose landings
Composite front side and straight back shock towers. The dense composite surprise towers have numerous shock angle functions permitting consumers to fine tune for varying track conditions.
Shock absorbers
Twin system 12mm big bore shocks with coated threaded systems, a geniune restriction design, a really sealing o-ring and spacer package. The Shocks may be used in Bladder or Emulsion setups. The shock-set includes some moulded pistons from which to choose. A myriad of springs-sets can be obtained to fine-tune the suspension system settings. Shock Collars with interior o-rings are employed on threaded figures to set-ride height.
Front top bulkhead
the key top bulkhead is and supports the top links and surprise tower in most readily useful means. The key area offers the replacement mount a front wing and sway club item
Front wishbones
the greatest Wishbones are produced from an excellent strong composite product. The arms are angled to optimize the CG and pivot on 3mm captured pins internally and away. The fingers have 2 mounting jobs for surprise angle and perhaps they are willing to use an optional anti-roll club if required.
Front and straight back Track Rods
Spring steel front part and straight back track rods are set up to durable composite captured ball bones. The track Rods have in fact really L/R threading for effortless alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 degree variation that are included. The caster obstructs are actually compact and strong products made from an exceptional composite product.
Steering Block and right back Upright
The steering obstructs fit 5x10x4 mm bearings. A corner hub uprights use a far more substantial 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering blocks and rear uprights use among the list of better high power materials available nowadays.
Upright Settings
a sizable part uprights let you adjust, the toe in from -2 to + 2 degrees by using various inserts additionally within the kit.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the effectiveness through various several types of corners. You've got 3 Ackermann solutions.
Wheel-axles and wheel hex.
The springtime steel wheel-axles used 12mm hex adapter to stick to market requirements. The leading springs steel axle is fixed, after the straight back wheel-hex is a clamping aluminium variation.
Battery area mount and fat security
The battery is established completely inside the center style of the automobile, and will also be relocated to front side or back once again to play with fat protection. The different parts of difficult foam can be obtained to do this and secure the battery power constantly set up. The battery-top-brace has a secure fast launch system with handy twist peanuts.
Differential
The gear-differential is a great lightweight, effective and durable device. The dwelling and installation is typical enter this program, however the quality parts and fine operating assists it be become noticed. The height linked to diff is changed because of the inserts.
Clutch
the automobile features an excellent slipper and a steel gear, to own a straightforward and durable system. The slipper clutch is optional.
Engine meal and engine guard
The motor dish is a machined aluminium; its then anodized and machined for fat. The composite motor guard will keep your motor safeguarded even after probably the most challenging of landings.
Anti-roll pubs
Anti-roll bars are fitted regarding front side and straight back associated with vehicle, but are optional. They could be put on high hold surfaces to help adjust the automobiles performance
Straight back Transmission situation
The composite straight back transmission example is light and durable. Licenses your consumer to change the differential height each specific condition. Additionally firmly holds the engine meal, differential and supports the trunk wing mount and back carbon fibre shock tower.
Right back driveshaft system, wheel-axles
The springtime steel drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, led by both various size of bearings, interior 10x14x4 mm and external 5x13x4 mm. The driveshaft pin is totally captured to avoid any failure. These bearings are let me make it clear to handle up the rigors of any track condition.
Back suspension system brackets and toe in
The 3mm springtime metal pivot pins occur constantly in place by the suspension system bracket made from aluminium. In the bracket you employ inserts to set toe-in and roll center. You are able to adjust the toe-in from 2 to 4 quantities and adjust the anti squat from 0 to 4 amounts.
Straight back suspension system fingers
The long and durable angled back suspension system system hands are specially tough items to withstand the rigors with this specific track combined with hard landings. The trunk supply provides 2 alternatives for shock spot and two mounting locations the rear anti-roll club if needed.
Back Chassis skid meal
The composite right back skid plate links towards framework plate. This connection lets you unclip a large component result in one piece, but assists in reducing the total cost of maintenance. Additionally it is made from exceedingly high power composite material.
Body shell and back wing
The prepainted and pre-cut light and low cab-forward design human body, built-in quality clear polycarbonate, has an incredible flowing line, high front component windscreen for down force with indents inside area throughout the windscreen. The shark fin at the very top linked to the cabin provides not only style but security. The smooth human anatomy lines increase the vehicles look and continue carrying this out nonetheless you prefer
The polycarbonate straight back wing uses raised cutes inside edges to enhance wheel approval.
Back wing owner
The composite straight back wing owner is connected to a big part bulkhead and shock tower. Its completely adjustable from 0,2,4,6 and 8 quantities. Its fixed into location by a washers and screws.
Ballbearings
high price sealed steel ballbearings with orange shields and aeroshell oil
Fastners
Rough steel , mostly allen screws, roundhead and countersunk. Minimized quantity of different allen minds to help make taking care of the automobile easier.
Tires
Durable white nylon flat faced tires, specifically designed to utilize the advancements in front component and rear suspension geometry. Dragon-Rc offroad tyres premounted.
RTR gear:
Dragon-RC 2.4GHz transmitter with 10 automobile memory, higher rate set-up possibilities, big LCD display. Along with supersmall receiver.
Powerfull Dragon-RC 9T brushless / sensorless motor.
Waterproof Dragon-RC electronic speedcontroller.
Dragon-RC premounted offroad tyres.
The kit comes as RTR car. Simply needs AA batteries r / c, a battery the vehicle and a charger.
