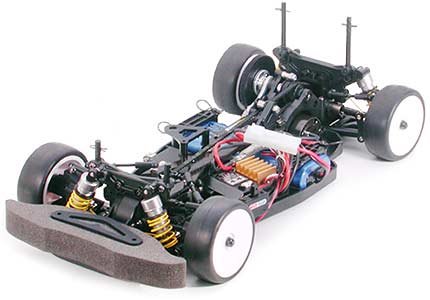

Tamiya 58282 - 1/10 TA04-R Chassis Kit [58282]

Price:

NZD$754.14

Brand:

Tamiya

Model:

58282

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"

Description

Double-deck framework of framework features carbon strengthened resin reduced deck and complete carbon top deck for increased durability. Chassis employs 2-belt 4WD with an overall total group of ball bearings plus ball differential gears for optimum drive efficiency. With a total variety of option parts and suspension system system that might be fine-tuned, this R/C framework remains genuine to pure competition. (motor, battery pack and speed control not included)

Built for Speed, down seriously to the tires Double wishbone suspension system system includes approval modification procedure and super-efficient wheel dampers. F/R top arms, steering tie rods, and torque rods feature turnbuckle shafts effective at fine adjustment.
The 04 Module Spur Gear- the Icing regarding dessert 04 module spur gear employs carbon plating to put up gear in place. 45T Pinion gear is sold with 128, 120, 112T spur gears. Chassis comes with aluminum motor temperature sink to facilitate effective temperature escape.

2 Belt Drive 4WD- a Recipe for Drive Efficiency
The TA04-R's 2 Belt Drive 4WD system affords minimized friction for maximum sporting efficiency.

Specs

Chassis Type: TA04-R
Scale: 1/10
general Length: 355mm
general Width: 186mm
Total Height: 135mm
Clearance: 8mm
body weight Completely Equipped: 1,425g (Dimension includes TP-S3003 servo, CPR device and RC2400SP Battery, without human anatomy.)
Wheelbase: 257mm
Tread F/R: both 162mm
Chassis Material: Carbon/Carbon fibre strengthened nylon
Chassis Shape: Double Deck Frame
Steering Tie Rod: 3 component
suspension system system system: Front and right back Double Wishbone
Caster Angle-F/R: 6deg/2deg
Camber Angle-F/R: adjustable
Toe Angle-F/R: 0 deg. adjustable/4deg
Damper: F/R TRF Damper
Transmission Type: Belt Mid-ship Full-time 4WD
Gear Ratio: 5.69:1 (kit standard)
Diff. Gear System: F/R Ball Diff
Suggested Speed Controller: Electronic Speed Controller
Tire Width: F/R both 24mm
Tread Pattern: F/R Slicks
Tire Diameter: F/R both 64mm

Optional Components Included

Carbon Reinforced Resin Lower Deck
TRF Dampers
Aluminum straight back Bulkhead Beam
Aluminum Servo keep
Urethane Bumper
Universal Shaft
5mm Aluminum Ball Connector (10 pcs.)
Medium-Narrow Reinforced Tires Type A
Medium-Narrow Smooth Inner Foam (1 Set)
TA04 Ball Differential Device
TA04 Aluminum engine Heat Sink
On-Road Tuned specialized Spring Set
TA04 Color Stabilizer Set (Front)
TA04 Colors Stabilizer Set (rear)
4mm excessive Lock-Nut & Spacer Set
TA04 Aluminum Hub Set For Spur Gear
TA04 Rushing Hub Carrier Set
TA04 Toe-In straight back Uprights
TA04 Minimal Friction Belt (front side)
TA04 Minimal Friction Belt (back)
TA04 Carbon Upper Deck
Comprehensive Bearing Set
*F/R Upper Arm, Steering Rod, Steering Linkage, and Torque Rod all usage Turnbuckle Shaft.

ELECTRICAL KITS WANT: (unless stated in different ways above)

Broadcast: 2-Channel with servo(s)
Battery: 6-cell flat with standard Tamiya connector
Charger: AC/DC timed or top for 6-cell battery
Paint: PS for Polycarbonate/TS for ABS
Misc. Things: Building and track equipment
