Tamiya 58274 - 1/10 TA04-S Chassis Kit  [58274]

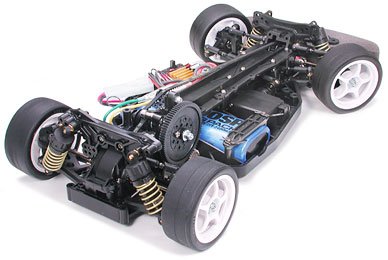

Tamiya 1/10 TA04-S Chassis Kit

Tamiya gift suggestions the superior, tasks kind of the most used TA04 framework employed by R/C enthusiasts of all ages and degrees of experience. Created to battle, this framework includes an overall total ball-bearing set to lessen drive loss and employs adjustable change buckle shafts. The high effectiveness 2 gear 4WD system, the 4-wheel double wishbone suspension system, and hardened resin twin deck framework about the TA04 were kept unchanged. Simply find the human body and motor of option and you will took choose to your world of real R/C race!

Comprehensive Ball-Bearings

The framework is sold with ball bearings not merely into the drive shaft, within the steering arms additionally. This permits for smoother driving and increased durability. Maintenance is manufactured easier aswell.

made with Turn-Buckle Shafts

the greatest and right back top hands, steering tie rods, and steering linkage all usage change buckle shafts. The size of the shafts could possibly be modified without decrease for effortless steering shaft modification.

2 Belt 4WD

The TA04-S framework employs a heightened effectiveness 2 gear drive 4WD system with an 83T spur gear. *Motor not included.

demands

• basic Length: 365mm
• General Width: 184mm
• Clearance: 8mm
• fat totally ready: 1,517g (measurement includes TP-S3003 servo, CPR device and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 162mm
• Chassis Material: ABS/Polycarbonate
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 component
• Suspension system: Front and Rear Double Wishbone
• Caster Angle-F/R: 10deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: 2 Belt Mid-ship Full-time 4WD
• Gear Ratio: 7.08:1 (kit standard)
• Diff. gear system: F/R 3-Bevel Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 26mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks
