Tamiya 58284 - 1/10 TB Evolution II / Limited Edition [58284]

Price:

NZD$577.93

Brand:

Tamiya

Model:

58284

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Tamiya 58284 - 1/10 TB Evolution II / Limited Edition" title="Tamiya 58284 - 1/10 TB Evolution II / Limited Edition"

Description

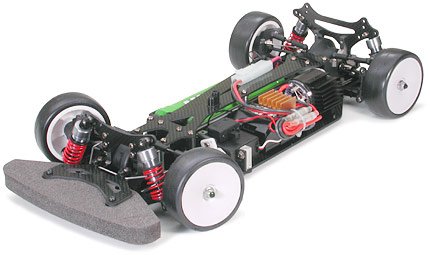

The TB Evolution evolves yet again! The pure battle kind of the TB Evolution framework, featuring its longitudinally put up motor and shaft 4WD has already reached the next phase of framework development. This next amount of development means an even faster top price, a transformation in suspension system geometry for improved control, and a balanced left/right roll. Forward and straight back gear situations have already been securely fastened with aluminum bulkheads. Chassis employs aluminum suspension system mount permitting modification of skid angle on suspension system system hands.

TB Evolution II includes not only the entire selection of newly developed standard parts, but a toolbox of cutting-edge battle choice elements and!

2.5mm-thick carbon reduced framework
2.0mm-thick carbon top framework
2.5mm-thick forward/rear carbon damper remain
2.5mm-thick carbon human anatomy mount stay
2.0mm-thick carbon battery power plate
TRF dampers
Aluminum suspension system system system mount
Aluminum motor mount
Aluminum propellar shaft
Comprehensive bearing set
Aluminum engine temperature sink
Aluminum servo stay (brief)
Light-weight aluminum wheel hub
Front/rear universal shaft
Special ball diff.
Front one-way
Front/rear stabilizer
Specialized urethane bumper
Fiber mildew tire, medium-narrow type a Specifications
- Overall size: 378mm
- Overall width: 187mm
- minimal approval: 5mm
- Body weight completely equipped: 1,490g (including TP-S3003 servo, CPR device, motor, RC3000MH electric batteries)
- Wheel base: 257mm
- Tread (front side part and right back): 163mm
- Chassis item: carbon
- Chassis kind: dual deck framework
- Steering tie rods: split in three portions
- suspension system system (front side and backside): double wishbone
- Caster angle (f/r): 8deg/0deg
- Camber angle (f/r): adjustable
- Toe angle (f/r): 0deg (variable)/3deg
- Skid angle: 1.6deg/0deg
- Dampers (f/r): TRF dampers
- Drive train: shaft driven, full-time 4WD
- Gear ratio: 6.73:1(kit standard)
- Diff gear system (f/r): ball diff.
- Speed controller: electronic speed controller
- Tire width (f/r): 24mm
- Tire diameter (f/r): 64mm
- Tread pattern (f/r): battle slick
*Limited Editionn
Motor, body, R/C equippment, and battery power provided individually
ELECTRIC KITS WANT:: (unless advertised an additional way above)
- Radio: 2-Channel with servo(s)
- Battery: 6-cell flat with standard Tamiya connector
- Charger: AC/DC timed or top for 6-cell battery pack
- Paint: PS for Polycarbonate/TS for ABS
- Misc. Products: Building and track gear
