The TB show framework design goes dating back to the Tamiya TGX nitro sedan framework in 1994. The TGX pioneered the guts shaft, band and pinion drive train for model automobiles. This shaft drive design was indeed quickly wear the TB-01 electric sedan framework, marking the beginning the TB series framework. The selling point of Sedan rushing induce a variant regarding the TB chassis called the TB Evolution. Designed for battle, the TB Evolution have been constructed with performance features such as a double deck carbon dietary fiber framework, carbon shock towers, aluminum motor mount and ball differentials. Data obtained from battle had been placed on enhance performance by means of the TB Evolution II. The TB Evolution II had lightweight differential components, aluminum bulkheads and adjustable suspension system system obstructs that allow accurate suspension system system angle modifications.

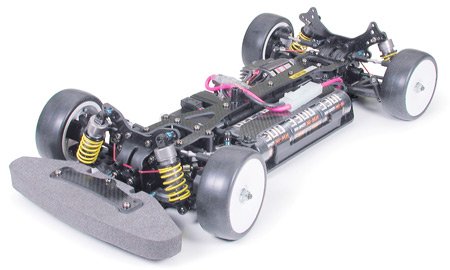

Tamiya�s TB Evolution III would be the latest variation of TB series framework featuring key improvements during the framework. One of the most significant improvements could be the destination connected with motor and battery power. The TB Evolution III is now loaded with the engine about the right hand side the framework as the batteries in left. This somewhat decreases torque steer form the engine and promotes stable throttle impact.
brand new Efficiency top options that come with the TB Evolution III
Lightweight differential out drives: These out drives behave like the F201 whilst the 414M. The design maximizes smooth vibration free energy transfer on tires.
completely new Center Drive Shaft:
The middle drive shaft features paid vibration during procedure further enhancing safety and effectiveness.
brand new Aluminum Spur Gear Adaptor:
Spur gear adaptor additionally decreases driveline vibration from spur gear. Spur gear size is actually increased to offset motor and extra reduce drive loss.
Narrow Carbon Chassis:
The lower framework finished up being made 5mm narrower to aid center the battery pack and electronic devices leading to quicker steering reaction and paid down framework scraping during hefty cornering.
completely new Chassis Brace Location:
The framework post connecting the upper and paid off framework is actually in line with the framework to equalize framework rigidity.
414M Suspension:
Suspension hands, caster obstructs and uprights are derived from the 414MII. Adjustable suspension obstructs allow exact roll-center, anti-squat and anti-dive modifications.
brand-new Front One-Way:
just as the one-way item regarding 414MII, featuring ultra smooth rotation for efficient cornering.
Immense weight-loss:
Bulkheads is expunged to make 40g (1.4oz) fat price benefits.
The TB Evolution III improvements on framework, drive train and fat improvements are certain to match both inventory and Modified sedan battle.
needs
- Chassis Type: TB Evolution III
- Scale: 1/10
- Total Length: 366mm
- Total Width: 189mm
- Clearance: 5mm
- weight Fully-Equipped: 1,440g (measurement includes TP-S3003 servo, CPR device and RC2400SP Battery with RS-540 engine)
- Wheelbase: 257mm
- Tread F/R: 163mm
- Chassis Material: Carbon
- Chassis Shape: Double-Deck Frame
- Steering Tie Rod: 3 component
- suspension system: Front and Rear Double Wishbone
- Caster Angle F/R: 4deg/0deg
- Camber Angle F/R: adjustable
- Toe Angle F/R: adjustable/2deg
- Skid Angle F/R: 1.6deg/0deg
- Damper: F/R TRF Super minimal Friction Dampers
- Drive Train: Shaft Driven regular 4WD
- Gear Ratio: 7.34:1, 6.88:1 (Standard in kit)
- Diff. Gear System: F/R One-Way/Ball-Diff
- Speed Controller: Electronic Speed Controller
- Tire Width: F/R both 24mm
- Tread Pattern: F/R Slicks
- Tire Diameter: F/R both 64mm
