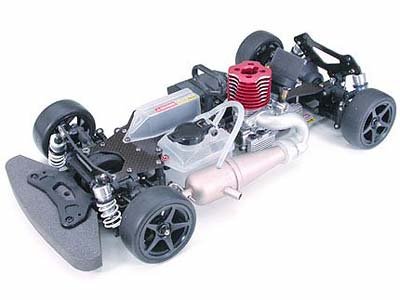

Tamiya 44032 - 1/10 TG10R Chassis Kit  [44032]

Towards TG10R

The glow-engine (TG10) battle scene is clearly faster and hotter than previously along with the new battle form of the radiance motor framework, the TG10R. Designed for racing, this framework employs a 2.5mm thick, hardened carbon double-deck framework. The framework in addition packs 4-wheel twin wishbone suspension system system and high-efficiency TRF dampers and stabilizers. 2.5mm thick carbon damper stay is fine-tuned and is highly responsive. This 198mm wide framework assumes on high-speed cornering with remarkable stability. The TG10R framework employs comparable 6mm diameter axles found in the 1/8 Scale R/C Glow motor car TGR framework and brings along side it the exact same energy. Offering a remedy to expert motorist demand, this framework comes completely high in demands needed for rushing regarding side!

Essential Rushing Features

• Complete ball bearings
• Carbon-built top deck
• Front/Rear carbon damper stay 2-speed goal
• High-grade stopping system disk TRF
• Damper Front universal shaft
• Front/Rear stabilizers Medium-narrow tire, sort A

Fundamental Specifications

• General length: 376mm
• general width: 198mm
• Total height: 100mm (excluding human body mounts)
• Clearance: approx. 7mm (adjustable)
• weight totally prepared: 1,580g (unfueled with 4 R6/AAUM3 batteries, Novarossi engine and TM2 Muffler)
• Wheelbase: 260mm
• Tread F/R: both 174mm
• Chassis product: 2.5mm Duralumin +2.0mm Carbon Fiber
• Chassis shape: double deck framework
• Steering tie pole: 3 component
• suspension system system: front part and back twin wishbone
• Caster angle-F/R: 8deg/0deg
• Camber angle-F/R: adjustable
• Toe angle-F/R: adjustable/1.5deg
• Damper: F/R TA04R super low-friction
• Transmission type: Shaft drive full-time 4WD
• Gear ratio: 8.1:1-6.4:1 (7.5:1-5.6:1)
• Diff. gear system: F/R 3-bevel diff
• Gas tank capability: 75cc
• Brake: disk kind
• Tire width: F/R both 24mm
• Tire diameter: F/R both 64mm
• Tread pattern: F/R slicks
