Serpent SER500503 Upgrade-set Aluminium Chassis SRX2 MH  [SER500503]

500503 Upgrade-set aluminium framework SRX2 MH3

The 2mm 7075 T6 framework is hard anodized and all paid down holes are countersunk. The set includes the sidebars and center moulded components to help keep the products placed well and stiffen up the framework. The framework can accept the 3 and 4 gear standard transmission and 3 and 4 gear laydown transmissions.

The batteryplate is a well machined carbon fibre one and increases the framework tightness too.

Leading end has another aluminium kickup-plate that'll effortlessly link on framework using the durable moulded connector brace. This permits you furthermore take to a carbon fibre framework effectively whenever needed and its own cheaper plus much more simple to change a kickup meal if needed.

The set also incorporates the newest Srx2 human anatomy which will effortlessly be used the present 4-gear automobile, combined with laydown 3 and 4 transmissions.

Leading and end merely mount in the framework up-date.

All components offer split a spares also.

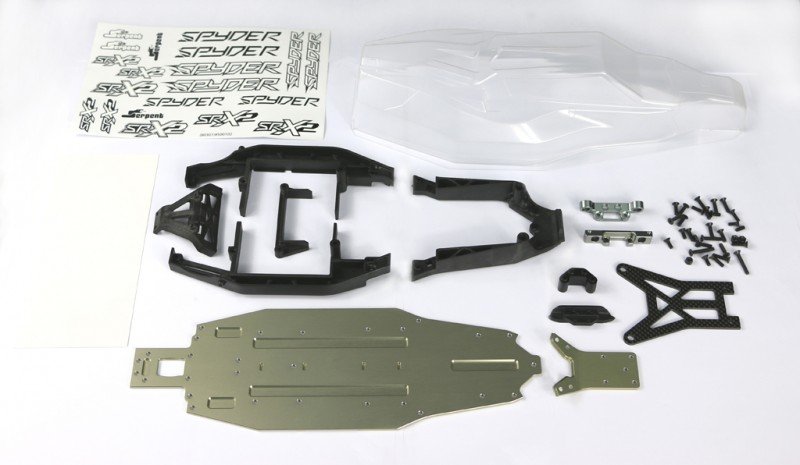

Articles about the set:

• S502 Spyder decal sheet b/wh 1
• S503-MM-Masking sheet 1
• S503-mm-battery-stap 1
• S503-mm-carriage-L 1
• S503-mm-carriage-R 1
• S503-mm-fr-kick-plate 1
• S503-mm-front-section 1
• S503-mm-inline-batt-holder 1
• S503-mm-rear-bulkhead-spacer 1
• S503-mm-rear-bumper 1
• S503-mm-rr-fr-toe-block 1
• S503-mm-rr-rr-toe-block 1
• S503-mm-trans-brace 1
• S503-mm-body 1
• S503-mm-chassis-alu-std 1
• cs-allen-m3x20 2
• cs-allen-m3x8 5
• cs-allen-m3x10 10
• cs-allen-m3x12 8
• CS Allen M3x16 1
• setscrew-m3x8 2
• nylock-nut-m3 3
