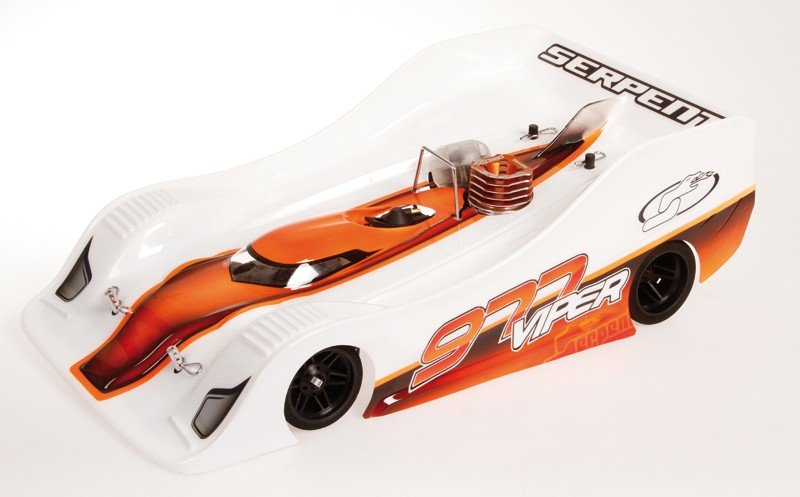

Serpent 1/8 scale Viper 977 race car. 2013-2014 IFMAR TQ and World Champion, Japan Tadahiko Sahashi with Viper 977 Gaspowered toplevel racecar with 4wd, belt-drive, Centax genuine movement clutch, SL8 gearbox, flex-system front part and straight back, stopping system on back axle, front one-ways, back sold axle, ballraced anti-rollbars. A completely adjustable battle framework towards latest spec and technology. Lighter, easier, better, fresh geometry, more tuning features.
Needs:
- system: 1/8th scale fuel on-road, IFMAR tips
- function: High-end competition
- weight: 2.420kg (relative to radio gear)
- Track-width straight back: 260mm - 266mm
- Track-width front part: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent enhance wishbone suspension system
- Shock absorbers: RCM shock absorbers
- car's automobile's vehicle's gas tank: 125cc design
- right back axle: Solid back axle
- Front axle: Aluminium front axle with one-way bearings
- Gearbox: Lightweight 2-speed SL8
- Clutch system: Centax real movement clutch system
- suggestions: Complete color guidelines
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and back roll centre
- Maybe perhaps not Included: motor, pipeline, human body, radio gear, tires, tires, battery pack
Features:
- Complete groundbreaking platform, 90percent new elements
- Lighter, though superstrong and durable
- Lower center of gravity
- brand new front component and backside geometry
- New interior drive ratio with new pullies
- Brake regarding the straight back axle
- brand-new front flex system
- quite simple to exert focus on with numerous small details according to below
- Many elements are symmetric left/right (except front lower hands, straight back 2-speed bearingblocks )
- many ballbearings run in synthetic bushings ( except brake-cam, servosaver)
5mm aluminium framework in perfect symmetrical form additionally for flex and fat circulation. Aerospace quality 7075 T6 alumnium with engraved logo. Improved tightness over the engine for better motor performance. Countersunk holes, chamfered edges for more cornering, ground approval. Region in center the main framework permitting mounting of optimum 3 metal sliding lots, and this can be used as set-up unit, to relax and play with chassis protection. It offers big influence on steering, hold and tyre use and it's quite simple and fast to enhance. All screws through base are with 2.5mm allen size.
The strong aerodynamic shaped composite bumper arises from the 966-TE . The upward sides helps it be more stabile, so these wont touch the very best under impact or with a premier conditions.
The durable composite front side part bodyposts are excentric, permitting going the human body to front part or right back a couple of mm to optimize steering / downforce.
The latest steeringblock , which will be create kept or appropriate, offers one thing to enhance the axle spot more to front or right back providing a trailing or leading steering, and capacity to change the kingpin-inclination and offset.
The spring-steel steering-rods are fastened towards alu steeringplates, which mount towards the modern steeringblocks. Optional carbon fibre disks is established independently connected with uprights to stiffen the construction as well as for aerodynamic reasons.
The steeringblock would work and left comparable, and features an aluminum dinner for connected the steering-rods, 2 options for Ackermann.
The newest much longer durable front component reduced wishbones, are placed up superlow inside car, and show a semi covered leg for the interior suspension system system pin in addition to the pivot hyperlink the leading component anti-roll club system, its also provides an extension the down-stop screw . The reduced fingers keep consitently the paid down alu shockmount supper, permits an additional away and greater mounting point the front shocks. The strong new top arms in-may be used kept and appropriate. Leading paid off fingers connect to the alu front part bracket on low nylon holders. The kit includes 2 variations, low and superlow. This method additionally allows you to alter a front driveshafts very swift and easy.
The longer top arms are installed associated with the anodized aluminum top brackets, which also support the suspensionpin inserts allowing camber-change modifications with 3 feasible inserts . Within the alu top-brackets spacers might be regularly modification angle or height. Caster spacers can be used as effortless videos regarding top pivot pins. Same videos can also be placed on the lower pins to enhance wheelbase.
The topmounted composite bracket provides extra stiffnes towards front component area, it holds the 3mm thick carbon dietary fiber front part shocktower and invite the down-stop screws.
The ballraced front side anti-roll club changed to a wire sort, with simple enough and fast available access regarding front side side component, captured in alu front component braces. The standard cable is 2.5mm and 2 other as options. The pivotballs link system directs the capability to the club in a smooth technique and a facile task to handle the tweak aided by the captured pivotball.
Appropriate appropriate ahead component the alu front part axle with Japan-made one-way bearings features now a better pully setup, without play and super-true. Springsteel drivecups, strong, long and slim spring-steel driveshafts with CVD system, and ballraced springsteel wheelaxles with alu quick-change levers. The available front end design permits quickly and easy reduction of this leading axle or elements.
The newly designed springloaded servo-saver enables effortless and fast Ackermann settings. The servo-saver features a top mounted insert which are generally used in 3 jobs. Another 2 Ackermann functions regarding steeringblocks.
The most recent steeringblocks and right back uprights relate to the hands with springsteel 8.5mm pivotballs , which operate incredibly smooth and well protected in nylon cups, and are simple to adjust with an allen item.
Lowered split-design 2.5mm carbon fibre radioplate frontplate to lessen the maximum market of gravity and invite the latest optional flex-control system. The frontplate produces an incredibly rigid front side component component product which also covers the servosaver to enhance steering precision. The radioplate holds the fueltank, the receiver electric batteries and integral electronic devices bracket/box.
Leading end construction includes an optional system allowing from zero flex for a lot of flex, around essential for optimal usage. A good system comprised of a bearing and bushing controls the flex. This set is optional. Enabling the flex the radioplate is split in 2 parts. One of the secrets dinner permits the torsion, considering that the front component meal keep carefully the front end rigid, thin flex occurs just in which most reliable. Standard the flex-space is full of an oval nylon spacer. The flex components contain 2 bearings and 2 inserts. By loosening the screw of alu owner within the front of primary radioplate , the flexsystem might be triggered ( or fasten to de-activate ).
Compact composite brace and package in one single, which holds and protects the receiver and mounts both servos, which both lay on the sides, just feasible, just only a little approval allowing for framework flex. The limitation from the receiverbox provides an original yet easy and simple safe owner the cable connectors associated with receiver, which works as a simple switch and it's also very available.
The optional carbon transponder brace mounts towards the integrated electronic devices brace. Whenever using only a little receiver, the container has area to keep the transponder too, but must certanly be tested for function ahead of the competition. Within our test that worked.
Repaid 125ccm fueltank in another long and slim design, with a premounted bronze filter. The slim tank makes yes a better fuel-supply towards engine, given that the gasoline can get less backwards and forwards. The labyrinth within the fueltank might keep carefully the gasoline more stabile and prevents foaming. The tank provides elevated parts ahead part, which will make yes the gasoline stays nearby the filter whenever the tank is amlost empty. This produces like a warning sign a matter of moments while watching tank goes totally empty, that may help you search for a safer spot to park. The fueltank has a good springloaded limitation and silicone rubber shaped seal, and possesses a hyperlink the force line. The internal base of th tank enables mounting inserts to cut back quantity if required.
The composite nylon radioplate bracket, holds a corner some the radioplate because the strong chromed angled roll-bar, in addition mounts the adjustable ballraced belt-tensioner. An aluminum one is optional.
All the topmounted screws might within allen 2.0mm size, excluding the top suspension system brackets in 2.5mm.
The batteryholder relating to the tank and side belt , was made to suit the more common Lipo packages. Additionally there is demonstrably room enough to permit for an everyday batterypack. The master includes an easy spacing system permitting this.
The light, hollow 8mm hardcoated aluminium center shaft is kept rigidly in location notably, low place and light alu owner, that also holds the spring-type exhaust-wire.
The past drive ratio the auto is 2.286
28T front side pulley
18T mid-inner pulley
25T mid-outer pulley
19T outside lay-shaft pulley
21T interior layshaft pulley
48T back axle pulley.
The majority of the superround and genuine pullies have actually really the truth is holes inside part flanges allowing dust and dirt to go out easier. The 977 has a complete brand new group of pullies, with extra teeth, therefore larger diameter making the belts run smoother, with less friction.
The belts are low friction type as standard, back one as 8mm, component in 6mm and front 6mm too. The adjustable ballraced belt-tensioner ( carbon, alu) keeps the sidebelt running smooth.
The reduced seated anodized aluminum motor mounts keep carefully the engine able and aligned and go temperature towards the framework in simplest means.
The most recent end construction using the alu brackets holds the braking system and back axle. Its available design permits eas of upkeep and cleansing, and needs acutely small screws to dis-assemble. Changing a belt whenever required, is easy and incredibly fast too. The excenter on backside shaft permits gear tensioning. The whole tail are eradicated while you product from chassis, with couple of screws.
The trunk axle sits reduced in the automobile than prior to, to complete more technical hold.
The stopping system relocated towards right back axle, near the solid axle pully. This reduces the inertia effectation of the brakedisc lots because the back axle spins a huge amount slow versus twospeed shaft. Combined with the brake-stress within the right back gear 's almost gone. Its a truly compact system and well protected against dirt, but nevertheless available enough to permit for adequate coolng. The swimming ventilated brake-disk rotates on a considerable part axle and springloaded cam-operated braking system pads provides most of the stopping energy you'll need. The competition stopping system pad product is baked on strong metal meals and allows really precise stopping with a good amount of brake-feel / feedback. In place of a cable we preferred the well-proven wire-linkage out of all the Serpent cars.
The ballraced braking system activator is bolted in a light alu owner towards the straight back bracket.
The ballraced backside anti-roll bar mount in metal adaptors, which operate in nylon spacers inside alu holders as essential one of the keys back brackets, with 2.5mm as standard cable and 2 other as alternatives. The anti-roll club links towards straight back repaid hands with adjustable trackrod guidance.
The solid straight back axle with unique lightweight 48T pulley in Serpent springsteel, 9mm wide with 4 slots for the pin.
The aluminium back brackets aside from the 2-speed layshaft holders have actually in fact small ears which enable mounting from optional alu or plastic spacer, to manage flex. Either complete flex, no spacer, or some flex with synthetic spacer, or zero flex using the aluminium spacer.
The suspension system system system bracket and back meal offer the pins securely and now have now composite roll-center inserts enabling fast and exact adjustments.
Into the back strong springsteel driveshafts , springsteel wheel-axles with alu quick-change levers and a springsteel straight back axle. Really durable and suffering drivetrain
This completely new much longer durable backside repaid wishbones can be used held and appropriate. The paid off right back provide holds the reduced put up connect the rear anti-roll club and holds the alu mounting bowl of a corner shocks, enabling a situation that's acutely far towards a corner and also to the most notable for a few easily of good use performance/ geometry. The lowr arms also keep carefully the available down-stop screws. Nylon videos can be utilized regarding paid off backside pins to improve wheelbase.
The durable composite uprights wthhold the ballraced springtime metal wheelaxles, with aluminium quick-change levers. The 8.5mm piotballs are acclimatized to adjust camber without headaches because of the smooth hex-shaped plugs . The hands about the drifting bodymount mount toward the top uprights. Inside the up-right spacers is added inside the pivotball to improve rollcenter and camberchange.
Optional carbon fibre disks could be attached to the medial spend this unique uprights to stiffen the construction and for aerodynamic reasons.
The adjustable back top camber links mount toward straight back carbon camberplate with 2 jobs .
A big component drifting bodymount is attached to the up-rights with 2 fingers and held constantly in place by a carbon-fibre-steel guider. Your hands have actually 2 positions available, centered on human body used. In conclusion with this specific mount enable mounting body-supports , with complete threading allowing exact positioning. The unit leads the available downforce direct onto towards uprights towards the tyres.
The compact, light 2-speed gearbox comes through the 966, featuring its verified durable and effective design, superb gears and suffering one-way. The 8mm springsteel 2-speed shaft is lightened , yet safe side to stop flex or breakage .
The most recent Serpent genuine Motion Centax clutch is prepared. Serpent as creator the original centax clutch, is rolling out from the clutch through the years plus the current variation excels in energy throughput , reliability and eas of environment. The original verison comes with aluminium clutch bell and hard anodized clutch-gears.
The kit features high rate ballbearings, mostly sealed individuals with aeroshell lubrication or oil. All bearings in to the automobile ( in addition to the servosaver and brakecam) are seated in nylon bushings to scale back vibrations and play.
The shockabsorbers may be the latest Serpent RCM devices with membrames. The threaded domiciles with setting-nuts ( or-ring inside) makes ride height improvements effortless and accurate. Leading and straight back shock are identical. The RCM shocks are receiving become smooth, and easy to construct and fill. The shocksprings are plumped for, matched, flatgrinded, colorcoded items, equal size front component and back.
