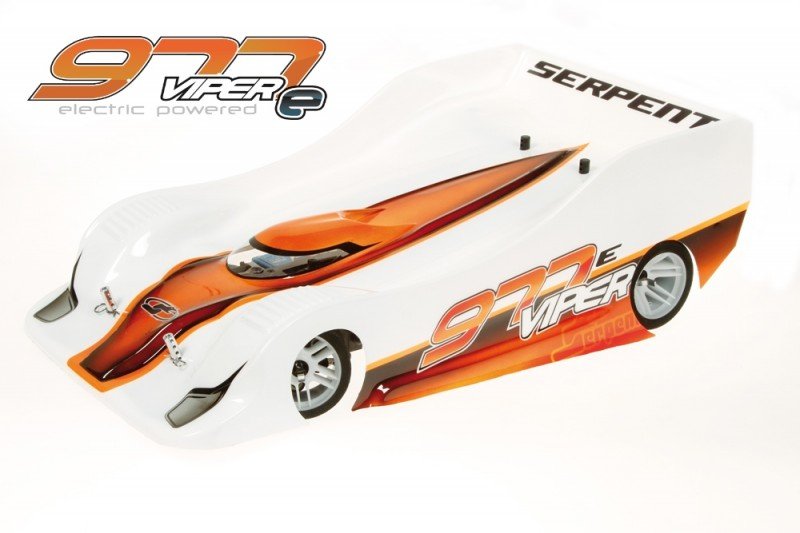

Serpent Viper 977-e would be the 1/8 scale electric type of the Viper.
Needs:
- Course: 1/8th scale electric on-road
- function: High-end competition
- fat: 2.3 kg (determined by gear)
- Track-width straight back: 260mm - 266mm
- Track-width front part: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm carbon dietary fiber, precision CNC machined
- broadcast dish: 2.5mm carbon fibre
- Suspension: Independent enhance wishbone suspension system system
- Shock absorbers: RCM shock absorbers
- Rear axle: Solid back axle
- Front axle: Aluminium front component axle with one-way bearings
- guidelines: Comprehensive color Instructions
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and right back go centre
- Not Included: radio gear, wheels, tires, battery power packages, speedo, engine aren't included.
Features:
- Carbon fibre framework 5mm and topplate 2.5mm
- Carbon fibre battery power bolder / protectors, completely adjustable fits many 3S LIPO batteries
- Lipo packages mount for each component off center, low and super balanced
- 2 gear system with 5mm belts
- Large pullies and ballraced gear tensioners
- Aluminium 7075 T6 motorholder in center, easy to alter motor
- Aluminium fan-holder to install 2 small or one larger fan
- 14T motorpully / 48T spur ratio
- Viper 977 front part and straight back suspension system and shocks
- Race-ready fat around 2600 to 2650 grams
2 gear system with 5mm wide belts for optimized effectivity. Both belts have actually in reality ballraced belt-tensioners.
5mm rigid carbon fibre framework in perfect symmetrical kind even for flex and fat distribution.
Countersunk holes, chamfered edges for significantly more cornering, ground approval. All screws from base are with 2.5mm allen size.
2.5mm carbon fiber top-deck to generate a robust and rigid connection betwixt your foremost and rear-end towards vehicle . The servo is mounted toward heart of car and will hold big and low profile servos. The guts provides also room fo the receiver which will be glued towards the tiny plate/ videos.
Strong carbon fibre battery power holders, which will effortlessly be effortlessly modified to suit top 2S or 3S battery power packages. The batteries is relocated more to your front part and/or right back with the versatile mounting system. This could be usually exchange the stability of car, to generate more steering or hold. The reduced and central place the batteries create the greatest and best feasible CG.
Strong carbon fibre speedo dinner, which fits hottest speedos well. The meal with speedo connected can be merely eradicated.
Smart machined aluminium motorholder in 8mm actually durable item, which might stay the enormous energy regarding brushless devices. It is also for this back bearingblocks to generate a rigid, yet versatile construction. The gearmesh is easily modified through base through vehicle. The kit includes a 14T pinion, other pinions could be had as options.
Center shaft owner in 7075 T6 alumium to hold and support the mid-shaft and spur (14T/48T). This could easily make changing a spur gear an instant and simple event.
Naturally the 977E has other features relating using the 977:
The strong aerodynamic shaped composite bumper arises from the 977 . The upward sides ensure it is be more stabile, so these wont touch the exterior lining under effect or with a high conditions.
The durable alu front side part side component bodyposts are excentric , to allow going your body to front component or right back some mm to optimize steering / downforce.
The steeringblock , which can be set up kept or appropriate, provides a method to improve the axle spot more to front or straight back providing a trailing or leading steering, this means power to replace the kingpin-inclination and offset.
The spring-steel steering-rods are fastened to your alu steeringplates, which mount towards the most recent steeringblocks. Optional carbon fibre disks is made individually about the steeringblocks to stiffen the installation and for aerodynamic reasons.
The steeringblock is appropriate and left similar, and features an aluminium dish helping you to link the steering-rods, 2 alternatives for Ackermann.
The long durable front side component paid down wishbones, are arranged superlow on car, and function a semi covered leg the inside suspension system system pin and pivot website link the key anti-roll club system, its comes with an expansion for the down-stop screw . The lower hands keep consitently the paid down alu shockmount supper, enabling another out and greater mounting point the leading shocks. The strong top hands works extremely well kept and appropriate. The leading reduced arms relate with the alu front part bracket on suprisingly low nylon holders. The kit includes 2 versions, low and superlow. This method in addition allows you to change a front driveshafts very swift and simple.
The longer top arms are installed regarding the anodized aluminium top brackets, that also provide the suspension system system system pin inserts to permit camber-change modifications with 3 feasible inserts . Beneath the alu top-brackets spacers enables you to modification angle or height. Caster spacers are employed as simple videos towards the top pivot pins. Identical videos tend to be applied to the reduced pins to enhance wheelbase.
The topmounted composite bracket provides extra stiffness towards leading component, it holds the 3mm thick carbon fiber front shocktower and get the down-stop screws.
The ballraced front part component anti-roll club is a cable kind, with very easy and fast start access in front part, captured within the alu front part braces. The typical cable is 2.5mm and 2 other as choices. The pivotballs link system directs the ability to the club in a smooth technique and simple to handle the tweak with the captured pivotball.
Inside front side component the alu front component axle with Japan-made one-way bearings features an absolutely free of fee of play and super-true pully setup . Springsteel drivecups, strong, long and slim spring-steel driveshafts with CVD system, and ballraced springsteel wheelaxles with alu quick-change levers. The available front part end design allows quickly and easy removal in regards to the leading axle or components.
The springloaded servo-saver enables simple and easy fast Ackermann settings. The servo-saver features a premier mounted insert which can be found in 3 jobs. Another 2 Ackermann functions into the steeringblocks.
The steeringblocks and straight back uprights relate with the fingers with springsteel 8.5mm pivotballs , which run exceedingly smooth and well protected in nylon cups, and most of the time are actually easy to adjust with an allen device.
All supertrue pullies have actually holes partly flanges allowing dust and dust to leave easier.
The trunk end construction with the alu brackets holds a sizable part axle. Its open design enables eas of upkeep and cleansing, and needs few screws to dis-assemble. Changing a gear in the event needed, is easy and extremely fast too. The excenter in regards to the backside shaft enables gear tensioning.
The ballraced back anti-roll club mount in steel adaptors, which operate in nylon spacers inside alu holders as vital the main straight back brackets, with 2.5mm as standard cable and 2 other as alternatives. The anti-roll club links toward rear reduced hands with adjustable trackrod guidance.
The solid straight back axle with new lightweight 48T pulley in Serpent springsteel, 9mm wide with 4 slots the pin.
The suspension system system bracket and back dish provide pins securely while having composite roll-center inserts allowing for quick and accurate modifications.
Inside right back strong springsteel driveshafts , springsteel wheel-axles with alu quick-change levers and a springsteel back axle. Extremely durable and enduring drivetrain .
The long durable straight back paid down wishbones can be utilized kept and appropriate. The paid off rear supply holds the lower installed url the back anti-roll club and holds the alu mounting plate of a corner shocks, permitting a predicament which may be really far on backside as well as the utmost effective for some readily useful performance/ geometry. The lower arms additionally support the readily available down-stop screws. Nylon clips can be used regarding the paid down backside pins to alter wheelbase.
The durable composite uprights wthhold the ballraced springtime metal wheelaxles, with aluminium quick-change levers. The 8.5mm piotballs are accustomed to adjust camber without headaches combined with the smooth hex-shaped plugs . The fingers connected with drifting bodymount mount towards the the most truly effective uprights. In conjunction with up-right spacers could possibly be added in pivotball to alter rollcenter and camberchange.
Optional carbon fibre disks might be mounted on along side it through the uprights for aerodynamic reasons.
The adjustable right back top camber links mount towards a corner carbon camberplate with 2 jobs .
The trunk drifting bodymount is connected to the up-rights with 2 hands and held constantly in position by a carbon-fibre-steel guider. The 2 fingers have actually 2 functions available, considering human anatomy used. In conclusion of the mount enable mounting body-supports , with complete threading allowing exact placement. They leads the available downforce direct onto in direction of uprights toward tyres.
The kit features higher level ballbearings, mostly sealed people with aeroshell lubrication or oil. All bearings inside automobile ( with the exception of the servosaver and brakecam) are seated in nylon bushings to lessen vibrations and play.
The shockabsorbers could be the latest Serpent RCM units with membrames. The threaded houses with setting-nuts ( or-ring inside) makes ride height corrections effortless and exact. One of many tips and straight back shock are identical. The RCM shocks are getting to be smooth, and simple to assemble and fill. The shocksprings are plumped for, matched, flatgrinded, colorcoded products.
