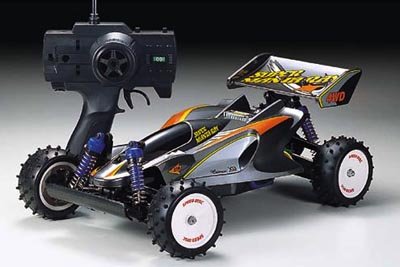

Tamiya 57708 - 1/10 XB Super Manta Ray  [57708]

Tamiya gift suggestions this pre-assembled 1/10 Scale handy remote control Buggy. The Super Manta Ray's dependable 4WD-shaft drive, 4-wheel double wishbone suspension system, and spiked tires alllow for a machine with the capacity of working with the most difficult of off-road courses. The handy radio control system comes pre-installed and pre-adjusted with a wheel and trigger-type transmitter. Batteries and charger available separately. (Batteries and charger might contained in some countries. Please contact the local Tamiya representative for details.) All you need to complete is open the container and grab the transmitter- now you might be prepared for a few serious R/C action!

The polycarbonate body comes pre-paintedThe shock-resistant, lightweight polycarbonate body comes pre-painted in tool metallic with stickers currently linked. Lettering on white meal tires can be pre-printed.

Monocoque Type fresh DF-01 ChassisNewly designed ABS monocoque framework is lightweight and shock-resistant. The Super Manta Ray employs a laterally put up motor that effortlessly transmits energy via its 4WD mid-ship shaft drive.

car Body Design Maximizes Resistance to DebrisA polycarbonate upper-cover affixed toward monocoque kind framework prevents little rocks from getting lodged inside interior components. Elimination of assessment target permits easy upkeep of crystal and speed controller.

Included PartsWheel and trigger-type Adspec GP transmitter specially made for handheld remote control procedure. Batteries and charger available individually. (Batteries and charger might be an integral part of some nations. Please contact the neighborhood Tamiya agent for details.) Transmitter demands eight R6/AA/UM3 batteries.

Optional components readily available for Increased EfficiencyThe Professional Built Super Manta Ray is built in identical fashion as an R/C installation kit. Components could possibly be disassembled and re-assembled. The kit comes with an average 3-step price controller which can be changed due to the Tamiya CPR product. High-power engine, ball bearings, and wheel dampers might included with enhance performance. Just as much as 6 split products can run at the same time provided that different transmitter crystals are utilized.

fundamental requirements

• Chassis Type: DF-01
• Scale: 1/10
• Length: 15.35 ins (390mm)
• Width: 9.84 ins (250mm)
• Wheelbase: 10.63 ins (270mm)
• Front Tread: 8.15 ins (207mm)
• right back Tread: 8.15 ins (207mm)
• Weight: 3.57 pounds. (1620g)
• Chassis: Monocoque
• Suspension: 4 wheel separate
• Damper Type: plastic coil over friction
• Drive Train: 4WD shaft drive
• Gear Ratio: 9.49:1
• Differential kind: Bevel Gear
• engine: electric 540
• Speed Controller: 3 action F&R Mechanical
• Wheels & Tires: Dish/Pin Spike
• real stature: Polycarbonate Cut & Printed
• Diff. gear system F/R: 3-Bevel Diff
• Tire width F/R: both 40mm
• Tire diameter F/R: both 84mm
• Tread pattern F/R: Pin Spike
• Power supply: 7.2V electric batteries (maybe not included)
