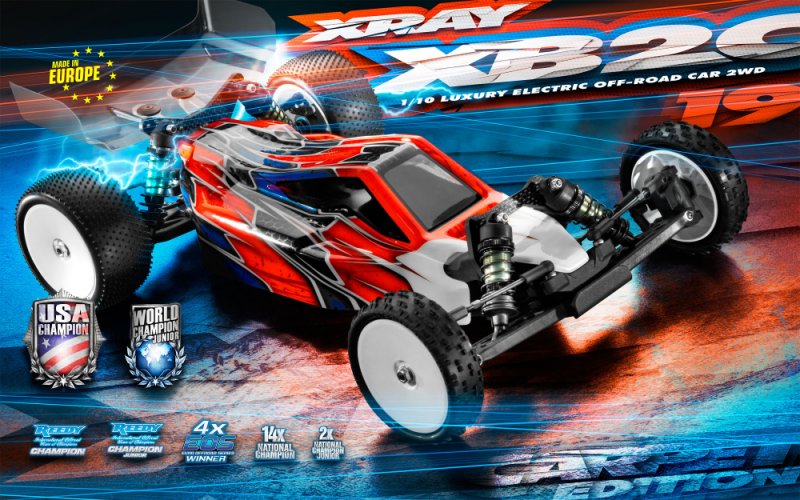

XRAY 320006 XB2C 2019 Specs - 2WD 1/10 Electric Off-road Car - Carpet Edition  [XR-320006]

XRAY XB2C '19

1/10 LUXURY OFF-ROAD vehicle 2WD

General

• Brand brand new, from ground up 2WD 1/10 electric race buggy
• Uni-Platform concept: Carpet Edition and Dirt Edition
• Full compatibility and interchangeable parts
• Designed for greatest performance anyway examples of racing
• Engineered with target smallest details
• Manufactured with famous imaginative craftsmanship from premium European materials
• EFRA, ROAR, FEMCA spec compliant
• Super very easy to build, arranged, keep, and drive
• Developed, designed, and styled by European Champion Martin Bayer and Dipl. Eng. Juraj Hudy, produced entirely by XRAY in Europe worldwide's numerous high level RC production facility
• Setting the newest standard for premium quality, dependability and performance
• Premium XRAY solution & support

Uni-Platform Concept

• Uni-Platform concept two editions: Carpet Edition and Dirt Edition
• Single platform, two editions for different traction conditions
• Full compatibility and interchangeable elements

 Carpet Edition:  created for medium to very-high traction conditions

• Gear Differential
• Mid-Motor Gear Box
• Mid-Motor Plate
• Graphite Front & right back Shock Towers
• Rear Roll Center Holder
• Motor Upper Brace
• Battery Strap
• Medium and tough Composite elements

• Dirt Edition:  designed for very-low, low, moderate, and medium-high traction conditions
  • Ball Differential
  • Mid Gear Box for 3 Gears
  • Mid & right back motor Plate
  • Composite Front & right back Shock Towers
  • Rear Roll Center Holder
  • Motor Upper Brace
  • Battery Strap
  • Gear cover
  • Medium Composite elements

Chassis

• Optimal framework fat blood circulation & security, specific to Carpet Edition or Dirt Edition
• Carpet Edition Gear Box and engine dinner specifically built to install the engine in middle spot with top shaft destination lower
• Dirt Edition Gear Box and motor Plate specifically designed to create the engine in either center destination or straight back destination, with top shaft put greater. Gear package might beautifully created using either a 3- or 4-gear setup, enabling modification connected with motor orientation from remaining to right component in either mid or straight back functions.
• distinctive XRAY Multi-Flex technology for effortless framework flex adjustment
• Swiss 7075 T6 hardcoated aluminum framework: lightweight, strong, rigid
• Electronics design enables going the batteries frontwards/rearwards, additionally making use of standard or mid-size servos and either utilizing seat pack or fast pack batteries
• Composite component guards are an easy little bit of the XB2 Multi-Flex system
• Custom-designed front side paid down framework brace, accessible in moderate and difficult hardness for several track conditions
• Front security bumper
• Custom-designed top deck, for sale in medium and hard hardness for all track conditions
• Swiss 7075 T6 aluminum engine meal, particular to Carpet Edition (mid-motor) or Dirt Edition (mid- or rear-motor)
• Battery musical organization with foam spacer, specific to Carpet Edition or Dirt Edition
• Lightweight, strong shock towers with numerous shock mounting functions, specific to Carpet Edition (graphite) or Dirt Edition (composite)
• Pre-drilled framework holes for additional lots for optimum vehicle balancing; centerline holes are pre-drilled for effortless balancing using the HUDY Chassis Balancing Tool #107880

Drivetrain & Differentials:

• Conventional gear-driven 2WD down road car
• Unique gear package, certain to Carpet Edition or Dirt Edition
  • Carpet Edition Gear Box and engine dish with lowered top shaft, forward-shifted engine for improved steering and managing on higher-traction surfaces
  • Dirt Edition Gear Box with raised top shaft, motor positioning nearer to differential for improved right back hold in lower-traction conditions
• Included right back differential is definite to Carpet Edition (gear differential with adjustable oil viscosity, 53T gear & inside satellite gears) or Dirt Edition (externally-adjustable ball differential with top-notch carbide thrustbearing and carbide balls)
• 25T graphite composite idler gear is for many to Dirt Edition & 36T gear to Carpet Edition
• 20T super-lightweight Swiss 7075 T6 hardcoated aluminum top shaft
• Robust slip-adjustable clutch with 81T main spur gear molded from exclusive key combination of composite material
• 3-pad slipper clutch with ultra-efficient SLS product to obtain additional efficient & exact slide modification, and HUDY Spring Steel™ hardened outdrives for additional lifespan and reliability
• Constant velocity drives (CVD) are manufactured from unique HUDY Spring metal for paid fat and increased durability
• Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 keeping in mind black-coated have actually ultra-true hex clamping design which guarantees solid mounting linked to the wheel
• Full group of 24 high-speed, blue-sealed ball-bearings can be utilized through drivetrain to be sure maximum effectiveness, degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and endurance

Suspension

• Integrated Suspension Settings (I.S.S.) for fast & easy suspension system geometry developing making use of eccentric bushings placed into Swiss 7075 T6 aluminum suspension system system holders
• Specially-designed suspension system system elements created from cautiously developed personalized composite mixtures to make sure appropriate flex and durability
• Race-perfected suspension system system system geometry for superior performance and freedom in nearly every competition conditions.
• Suspension elements: hands, steering obstructs, caster obstructs and uprights is available in moderate and hard hardness for most track conditions
• Lower composite supply mount with integrated 26° kick-up angle; optional aluminum and metal supply mounts available
• Lightweight, rigid caster obstructs can do different basic caster angles using included caster bushings
• Tiny yet tough steering obstructs composed of composite steering obstructs + graphite Ackermann extensions
• Adjustable weight security & wheelbase via included shims on external suspension pins
• Compact backside uprights with 0° toe and 6 different top roll center positions
• HUDY Spring steel item for turnbuckles (featuring a tougher core) can be used for front & rear upright linkages, and steering system.
• Optionally available straight back anti-roll club set to guide a large part for the automobile; easily modified via linkages; laser-engraved markings for effortless recognition, easily obtainable in a variety of sizes for fine-tuning

Steering

• Simple yet effective dual-arm steering system
• Fully bearing-equipped with 8 high-speed ball-bearings for really accurate steering
• Easily-adjustable Ackermann by fast transforming the steering hyperlink mounting jobs regarding steering plate
• Bump guide modification for lots more aggression
• Ackermann modification via included shims or making use of various graphite expansion meals on steering obstructs

Shocks

• constant, dependable, membrane-free shocks with bleed-screw shock limit design function up-stop & downstop modification via shims (under surprise collar, and under pistons, correspondingly)
• Swiss 7075 T6 aluminum shock figures, paid down nut & bleeder surprise caps
• Super-precise molded Delrin™ pistons can be acquired with different holes & diameters for exact surprise modification; for personalized modification, some blank pistons (no holes) will also be included
• Shock rods are machined from a particular metal product, precision hand-ground for maximum smooth operation and additionally hardened for increased lifespan
• Premium shock springs created particularly to check the XB2 shocks; by hand determined, selected and matched into pairs to make certain equal size and damping characteristics; laser etched for easy identification
• Full distinct linear -or- modern shock springs available
• Premium silicone natural oils laboratory tested and calibrated to be certain optimum determination and quality

Body, Wings, Wheels:

• High-downforce, low-profile aerodynamic Lexan™ human anatomy developed to entirely fit the XB2, flat cockpit & body sides to direct airflow for improved component safety, and rooftop flow channels
• Tough composite component guards work double-sided Velcro™ tape to seal your system totally towards framework and seal against dirt.
• Optional available ultra-lightweight body for very-high-traction tracks conditions
• Stylish, effective Lexan backside wing made to work completely due to the XRAY XB2 body, supported on wing mounts by extra flat shims to elevated help and expand the life span about the wing. Suggested thicker 1.5mm (#323511) right back wing for greater traction & stability
• Lexan front component wing yields front downforce, mounted completely on front side surprise tower
• Specially designed 12mm hex hub tires for high-competition race; featuring reinforcement ribs to eliminate deformation and molded from actually versatile product to retain sort despite having impacts

Assembly, Set-up & assist:

• Premium 3D full-color tips & supplementary sheets
• To completely realize the set-up possibilities we suggest the most popular HUDY Set-up Book which will be full of over 40 pages of high-quality pictures and easy-to-read RC automobile set-up explanations
• Exclusive Virtual on line Setup Sheet database with a wide array of set-up sheets for battle songs on the world
• Premium, unmatched XRAY online support

Adjustment opportunities:

• Fully-adjustable front part and straight back suspension system system geometry: caster, camber, right back toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, Multi-Flex
• Adjustable back differential action
• Adjustable slipper clutch
• Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & rear top links)
• several top & reduced shock mounting locations at front & rear
• Adjustable Ackermann and bumpsteer
• Optional adjustable rear anti-roll bar
• Chassis pre-drilled holes for fat stability modification
