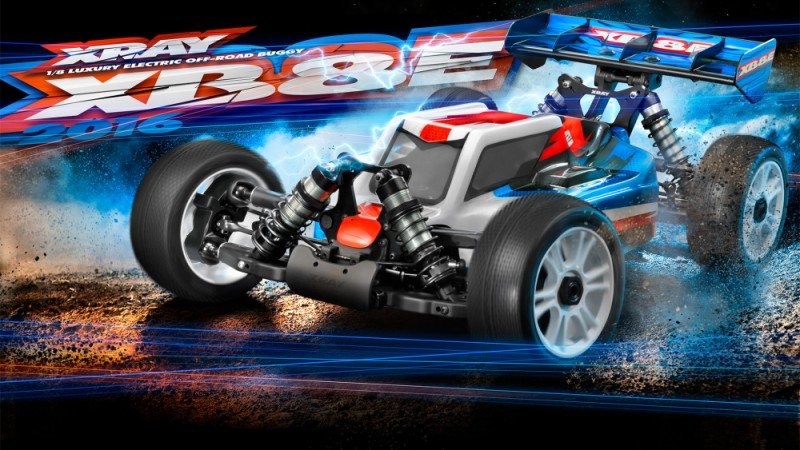

XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car [XR-350153]

Price:

NZD$1,126.77

Brand:

XRAY

Model:

XR-350153

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category

Write a review

alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"

Description

Dimensions

Length: 500mm
Chassis size: 399.5mm
Wheelbase: 322~328mm
Width: 310mm
Weight: 2014g
Approximate working fat: 3450g

Chassis

Chassis: 3mm CNC-machined Swiss 7075 T6 hardcoated aluminum
Receiver tray: CNC-machined 2.2mm graphite
Radio example: Composite
Front top deck: CNC-machined 2.5mm graphite
Central diff top deck: CNC-machined 2.2mm graphite
Braces: Composite braces (front side component / right back)

Suspension

Suspension: Pivot ball entirely adjustable suspension
Rear suspension system system: Lower H-arm with adjustable top camber link
Front suspension system system: Lower H-arm with adjustable top camber url A-arm
Rear upright: Composite with double supply mounting and 2 repaid roll center jobs and top aluminum dinner with 3 top roll center jobs
Shocks: Big-bore shocks with various surprise pistons featuring Delrin pistons
Shock towers: Front & rear 4.0mm alu

Drivetrain

Type: Full-time shaft-drive 4WD w/ center differential
Primary: steel spur gear / pinion
Drive shafts: HUDY Spring metal CVD drive shafts
Central shafts: HUDY Spring metal CVD drive shafts
Differentials: Sealed, 6 gear, silicone-filled
Bearings: Rubber-sealed

Gearing

Pinion: 14T front part / rear
Crown gear: 46T front / rear
Pinion gear: not included (optional 12T~17T)
Spur gear: 46T
Primary ratio: 3.33
Final gear ratio: 11.79

Body, tires, wheels & misc.

Body: XRAY XB8'16 body
Tires: maybe not included
tires: not included, standard 17mm hub

Modification possibilities:

Standard modification: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, paid down & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex, fat stability

Products not included:

Electrical motor, Electronics (broadcast, Receiver, Steering Servo, Battery Pack, Speed Controller), Pinion gear, Wheels, Tires, Tools, Wheel device, Paint, Battery Charger, Bearing Oil, Threadlock, CA Glue, Universal item for a lot of peanuts and turnbuckles, Set-up Book

Remark :

Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
