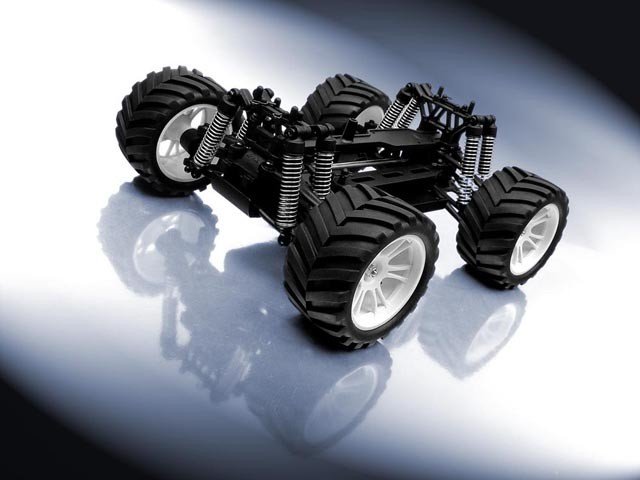

XRAY 380600 M18MT - 4WD Shaft Drive 1/18 Micro Monster Truck [XR-380600]

Price:

NZD$232.81

Brand:

XRAY

Model:

XR-380600

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Monster Trucks category

Write a review

alt="XRAY 380600 M18MT - 4WD Shaft Drive 1/18 Micro Monster Truck" title="XRAY 380600 M18MT - 4WD Shaft Drive 1/18 Micro Monster Truck"

Description

Dimensions

Class: 1/18 electric micro monster truck
Front Width: 195mm
Rear Width: 195mm
Length: 222 mm
Wheelbase: 150 mm
Weight: 395g
Ready to work fat: 585 g

Chassis:

Chassis: composite CAD-designed chassis
Upper deck: composite top deck
Body: 150 mm 1/18 micro monster vehicle body (included)

Drivetrain:

Type: shaft-drive 4WD
Drivetrain: aluminum main driveshaft
Primary drive: pinion/spur
Drive ratio: 1:2.5
Drive shafts: composite front part + back
Differentials: composite ball differentials - adjustable front part + rear
Bearings: 22 high-speed ball-bearings

Suspension system:

Front: totally separate
back: entirely independent
Dampening: oil-filled coil-over shocks

Geometry:

Camber: front/rear: -2° (preset)
Caster: 12° (preset)
Front Toe: toe-out 0.5° (preset)
backside Toe: toe-in 3.5° (preset)
Anti-roll pubs: perhaps not included
Wheelbase: 150 mm

Other folks:

tires: XRAY micro monster automobile wheels
Tires: XRAY micro monster car tires with Chevron pattern
directions: full-color manual with 3D layouts
Packing: carton package with 8 plastic bags with parts
Additionals included: certificate, components list, decals, Hudy 3.0mm screwdriver, XRAY catalog
Not included: radio system (transmitter and receiver), steering servo, ESC, engine, battery power, battery power charger, CA Glue and lexan paint

Remark :

Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
