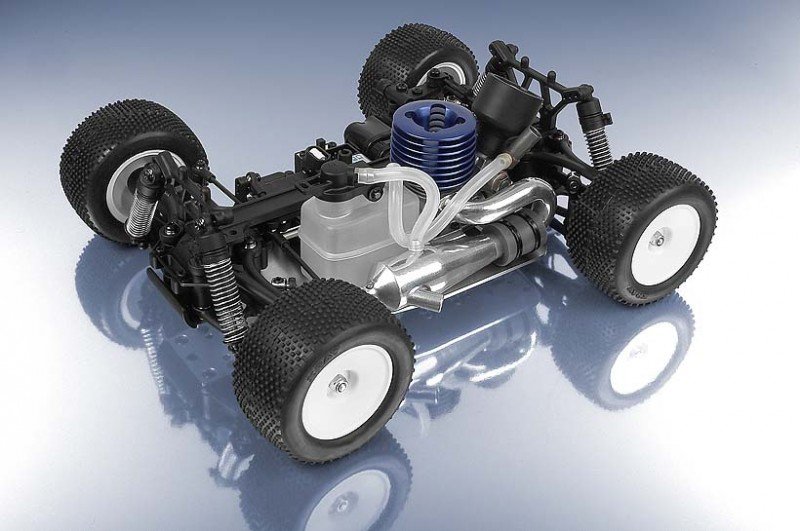

XRAY 380700 NT18T - 4WD 1/18 Micro Nitro Truck with Engine & Muffler  [XR-380700]

Dimensions

• Class: 1/18 nitro micro truck
• Front Width: 178mm
• Rear Width: 180mm
• Length: 208 mm
• Wheelbase: 150 mm
• Ready to make use of fat: 690g

Chassis:

• Chassis: Swiss T6 7075 CNC-machined framework
• Upper deck: composite top deck
• Body: 1/18 competition vehicle body

Drivetrain:

• Type: shaft-drive 4WD
• Drivetrain: aluminum main driveshaft
• Internal ratio: 1:2.5
• Drive shafts: composite front part + right back
• Differentials: composite ball differentials - adjustable front component + rear
• Bearings: 24 high-speed ball-bearings
• Brake system: adjustable braking system; laser cut, hand-ground steel braking system disk; Ferodo braking system pads

Suspension system system:

• Front: fully separate
• Rear: totally independent
• Dampening: oil-filled coil-over shocks
• Servo saver: included (rugged)

Geometry:

• Camber: front/rear: -2° (preset)
• Caster: 12° (preset)
• Front Toe: toe-out 0.5° (preset)
• backside Toe: toe-in 3.5° (preset)
• Anti-roll bars: 1.0mm front part + back (included)
• Wheelbase: 150 mm

Engine

• Engine effective 0.8cc engine
• Motor mounts CNC-machined aluminum motor mounts
• Carburetor aluminum slide carburetor
• Muffler polished muffler
• Fuel tank 30cc gas tank w/ hypertonic lid & inside stone-type filter
• Flywheel aluminum flywheel
• Clutch bell HUDY steel clutch bell
• Clutch footwear CNC-machined aluminum clutch shoes
• Fuel tubing silicone fuel tubing

Other people:

• Wheels: XRAY micro vehicle wheels
• Tires: XRAY micro car low pin synthetic tires
• directions: full-color manual with 3D layouts
• Packing: carton industry with 11 synthetic bags with parts
• Additionals included: certificate, elements list, decals, Hudy 3.0mm screwdriver, XRAY catalog, novice box
• Not included: radio system (transmitter and receiver), micro servos, lexan paint, gas, radiance plug heater, receiver battery power
