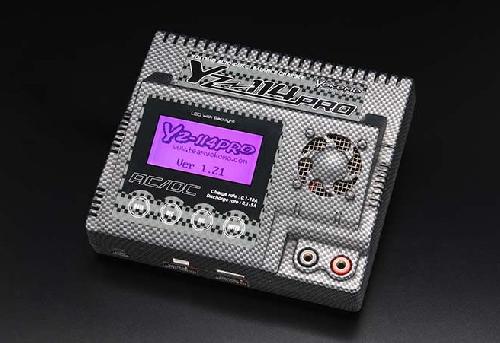

Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)  [YOKYZ114PRO]

•
  the possibility concerning the AC / DC cost and release vessel with a fully-featured necessary in assisting someone to gain benefit from the RC car debuts! While the input energy supply handy AC100V, i am aware the high production payment present of 10A. A reaction to numerous various battery, launch function, including security asking function, a helpful function will be the high-spec repayment and discharging of vessel complete. Further, the waiting Age, during recharging you, combined with the billing you you by in conclusion of intent behind along with concerning the backlight is changed on the basis of the sort of the battery power is prepared. Graphical representation regarding the expense and launch furthermore convenient, it really is safe developed in such a means that one can comprehend the fee state intuitively.

Sets Includes:

• Cost and launch vessel body principal human body of battery pack charger x1
• AC100V energy cable power cable (AC100V) x1
• DC12V energy cable energy cable (DC12V) x1
• 7.2V electric batteries connector for 7.2V battery pack hyperlink cords x1
• Mini Battery linking cable Mini battery link cordes x1
• Banana connector with linking cable Banana connector cords x1
• Alligator connector Clip connector x1

Specials Features:

• Charge active: 10A
• Discharge present: 5A
• Input energy: AC100V ~ 240V DC11V ~ 15V
• Appropriate Battery: Li-po · Li-fe 1-cell to 5 mobile Ni-MH · Ni-cd 1-cell to 14 cellular
• Balance recharging function gear
• The graph displays the recharging you and discharging
• Battery mobile count automated recognition
• Standby, recharging you time, billing you by the conclusion, along with the backlight is changed by the asking mode, is analyzed instantly hawaii.

Features:

• Energy / energy DC11-15V AC100-240V (50/60Hz)
• Rechargeable battery power matching mobile volume / Battery-number towards cells
• Li-po 1-5cell (3.7-18.5V)
• Li-fe 1-5cell (3.3-16.5V)
• Ni-cd/Ni-MH 1-14cell (1.2-16.8V)
• Recharging current / cost current
• Li-ion/Li-po/Li-fe 100-10000mAh 1C (0.1A-10.0A)
• Ni-cd/Ni-MH 0.1-10.0A (0.1A step)
• Discharge present / Discharge current Ni-cd/Ni-MH/Li-ion/Li-po/Li-fe 0.1-5.0A (100mAh step)
• Charge limitation / Charge limitation 85W
• Discharge limitation / Discharge limitation 20W
• Delta top voltage / Delta peak voltage Ni-cd/Ni-MH 3-25mV/cell
• Display / Show 128 x 64/7 color LCD Backlight
• Proportions: 172 × 154 × 58mm
• Please keep in mind the main cord is for a Japanese design plug socket
